KNC-F5 & KNCF1-22 & KNCF1-11 Contactors Blocks series auxiliary contact blocks are installed at the top of JZC4 control relay or KNC1 contactors for expanding the couples of auxiliary contacts points. Owing to adopt the contacting functions of sliding friction , the item can be selfcleaning & ensure the electric circuit to be reliable.

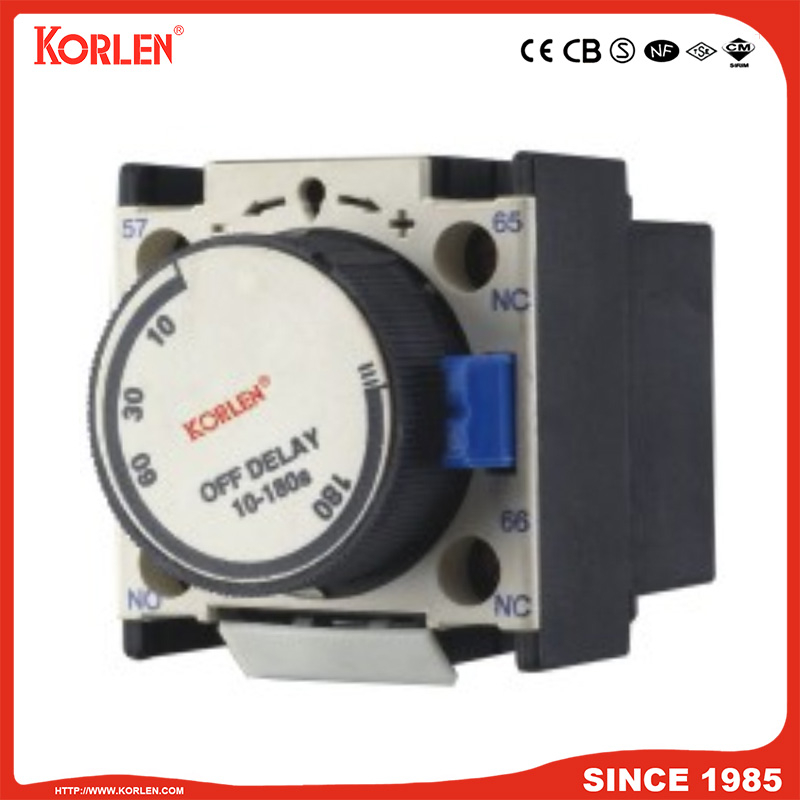

KNC-F5 time delay auxiliary contact blocks are combined with KNC1 AC contactors & KNCF1 auxiliary contact block into be KNC1 star-delta reduced coltage starter to start motor.
KNC-F5 & KNCF1-22 & KNCF1-11 Contactors Blocks series auxiliary contact blocks are installed at the top of JZC4 control relay or KNC1 contactors for expanding the couples of auxiliary contacts points. Owing to adopt the contacting functions of sliding friction , the item can be selfcleaning & ensure the electric circuit to be reliable.
KNC-F5 time delay auxiliary contact blocks are combined with KNC1 AC contactors & KNCF1 auxiliary contact block into be KNC1 star-delta reduced coltage starter to start motor.
Type | KNCF1-02 | KNCF1-11 | KNCF1-20 | KNCF1-22 | KNCF1-40 | KNCF1-04 | KNCF1-13 | KNCF1-31 |
Contact number | 2NC | NO+NC | 2NO | 2NO+2NC | 4NO | 4NC | 1NO+3NC | 3NO+1NC |
Type | Delay range | Number of the delay contacts |
KNC-F5-DT0 KNC-F5-DT4 KNC-F5-DR4 | 0.1~3s 0.1~30s 10~180s 0.1~30s 10~180s 0.1~3s | NO+NC |
Type | KNCF1-02 | KNCF1-11 | KNCF1-20 | KNCF1-22 | KNCF1-40 | KNCF1-04 | KNCF1-13 | KNCF1-31 |
Contact number | 2NC | NO+NC | 2NO | 2NO+2NC | 4NO | 4NC | 1NO+3NC | 3NO+1NC |
Type | Delay range | Number of the delay contacts |
KNC-F5-DT0 KNC-F5-DT4 KNC-F5-DR4 | 0.1~3s 0.1~30s 10~180s 0.1~30s 10~180s 0.1~3s | NO+NC |
