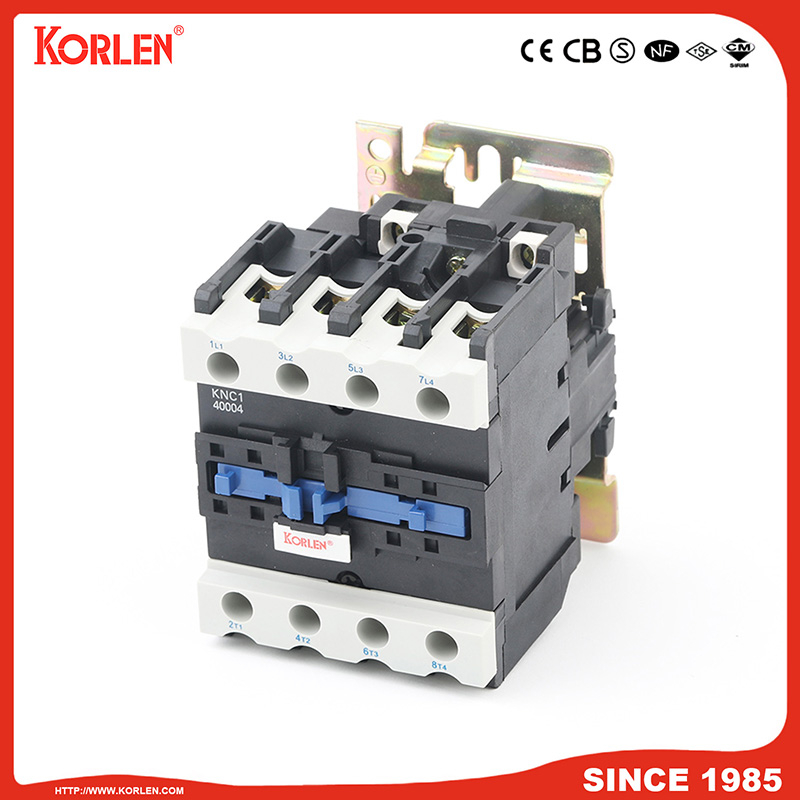

KNC1 AC Contactor

Availability:
Quantity:
  • KNC1
  • Korlen

    The series KNC1 AC contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reversible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air time delay head, mechanical interlock mechanism, etc. Moreover,it could act as the electromagnetic starter by the direct plug of the thermal relay.
     This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.

Type Rated
insulation
voltage(V)
Conventional
thermal
current(A)
Rated
operation
current(A)
Control power(kw) No .of
contacts
Remark
220V 380V 415V 440V 660V
KNC1-0910
0901

660 20 9 2.2 4 4 4 5.5 3P+NO
3P+NC

Installation
method
1.with two
screws
2.35mm
din rail
KNC1-1200
1201

20 12 3 5.5 5.5 5.5 7.5 3P+NO
3P+NC

KNC1-1810
1801

32 18 4 7.5 9 9 9 3P+NO
3P+NC

KNC1-2510
2501

40 25 5.5 11 11 11 15 3P+NO
3P+NC

KNC1-3210
3201

50 32 7.5 15 15 15 18.5 3P+NO
3P+NC

KNC1-4011 60 40 11 18.5 22 22 30 3P+NO+NC Installation
method
1.with three
screws
2.75mm or
35mm
din rail
KNC1-5011 80 50 15 22 25 30 33
KNC1-6511 80 65 18.5 30 37 37 37
KNC1-8011 125 80 22 37 45 45 45
KNC1-9511 125 95 25 45 45 45 45

Type KNC1-09 KNC1-12 KNC1-18 KNC1-25 KNC1-32 KNC1-40 KNC1-50 KNC1-65 KNC1-80 KNC1-95
Pick-up voltage
50/60Hz(V)
(0.85~
1.1)Us
(0.85~
1.1) Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
(0.85
~1.1)Us
(0.85~
1.1)Us
(0.85~
1.1)Us
Release voltage
50/60Hz(v)
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
(0.2~
0.75)Us
Coil power 50Hz

60Hz


Pick-up(VA) 70 70 110 110 110 200 200 200 200 200
Holding(VA) 8 8 11 11 11 20 20 20 20 20
Pick-up(VA) 80 80 115 115 115 200 200 200 200 200
Holding(VA) 8 8 11 11 11 20 20 20 20 20
Power
consumption
(W)
1.8~2.7 1.8~2.7 3~4 3~4 3~4 6~10 6~10 6~10 6~10 6~10
