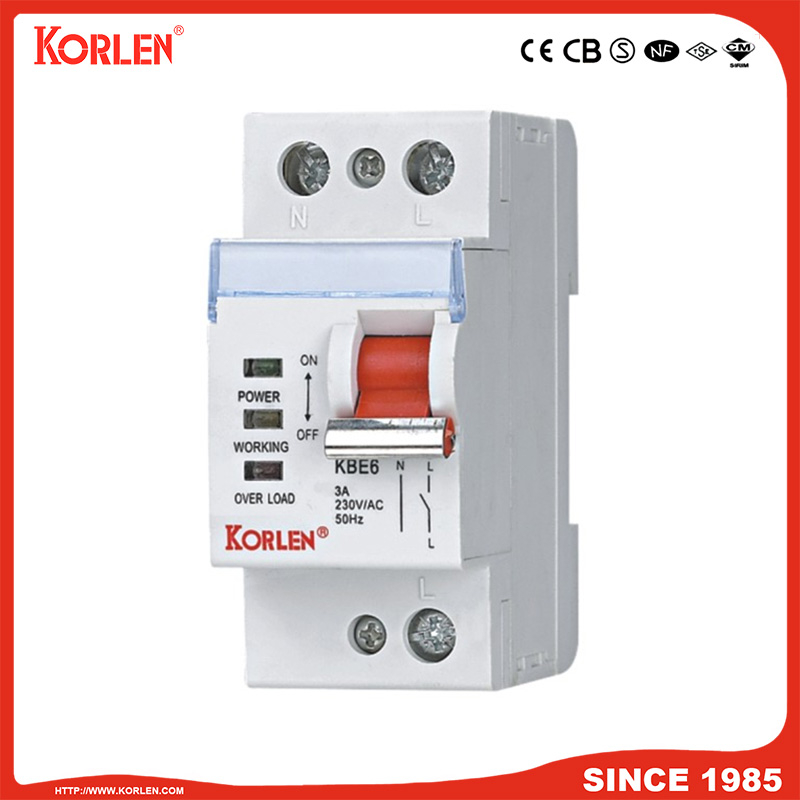

KNE6 Over-load Protector

Availability:

Quantity:



Inquire Add to Basket

Model:
KNE6
Brand:
Korlen

KBE6 series Over-load protector is nice in appearance, reasonable in structure, sound in feature and high in breaking capacity. Installed with standard din rail, it is convenient and easy in usage. It is mainly used in the line of AC 50/60Hz, rated working voltage to 240V, and rated current to 10A as protection against overload . It can be used as infrequent on-and-off operation and changeover.

Korlen Kns Type SPD 275VAC Power 4p 10/350 25ka Surge Arrester Protector Device SPD

KNS Surge Protective Device

Tel: 0086-577-62207777 / 62870277
Add: NO.258 Weiershi Road,Yue Qing Economic & development Zone（yanpan),zhejiang China
E-mail: korlen@korlen.com
Fax: 0086-577-62661666

Frame class	10A
Rated working voltage	240V
Rated frequency	50/60Hz
Rated working current	2、3、5、10A
Poles	1P+N

Sequence NO .		Start state	Current tripping time	Expected result	Test method
Rated voltage		Cold state	a 0.9ln:t≥1h	No tripping	Limited current tester
		Hot state	b 1.1ln:t≤3min	Tripping
			Follow item b 1min≤t≤3min	Re-set to working state
Working voltage	180V	Hot state	a 0.9ln:t≥1h	No tripping
			b 1.1ln:t≤3min	Tripping
	240V
			Follow item b 1min≤t≤3min	Re-set to working state

Frame class	10A
Rated working voltage	240V
Rated frequency	50/60Hz
Rated working current	2、3、5、10A
Poles	1P+N

Sequence NO .		Start state	Current tripping time	Expected result	Test method
Rated voltage		Cold state	a 0.9ln:t≥1h	No tripping	Limited current tester
		Hot state	b 1.1ln:t≤3min	Tripping
			Follow item b 1min≤t≤3min	Re-set to working state
Working voltage	180V	Hot state	a 0.9ln:t≥1h	No tripping
			b 1.1ln:t≤3min	Tripping
	240V
			Follow item b 1min≤t≤3min	Re-set to working state
