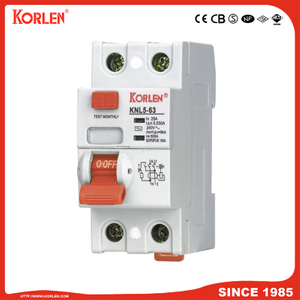

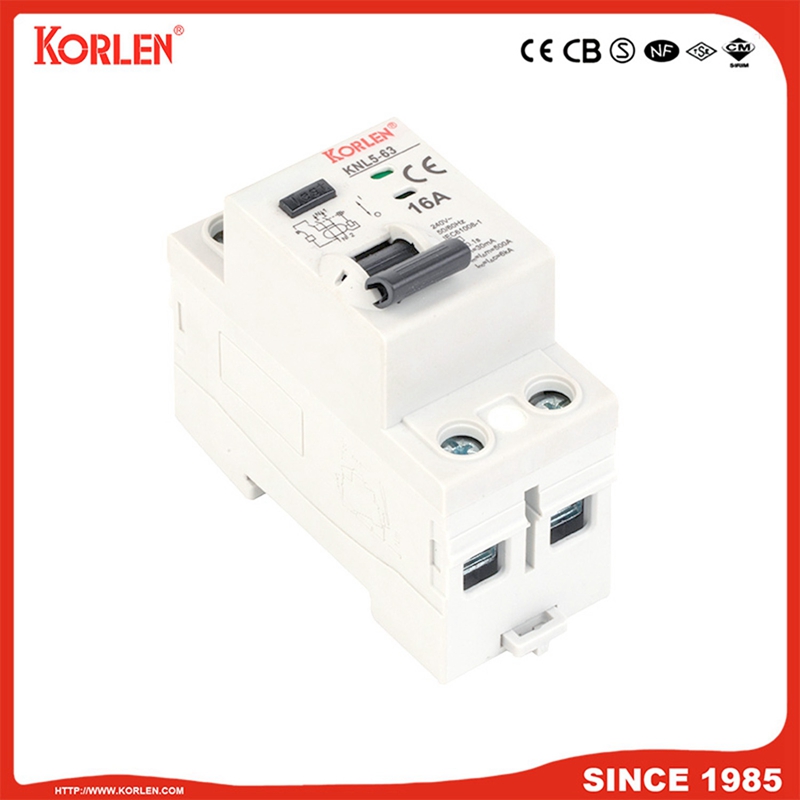

KNL5-63 Residual Current Circuit Breaker

Availability:
Quantity:
  • KNL5-63

  • Korlen

    KNL5 series Residual current circuit breaker(without over-current protection) is suitable for the line of AC 50/60Hz, voltage 240V(2 pole)/415V(4 pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage. It can be used as infrequent changeover of the line in normal situation.It is applicable to industrial site, commercial site, tall building and civil house.
    It complies with standard of GB16916.1 and IEC/EN61008.1.

Frame 63A
Rated working voltage 240/415V
Rated frequency 50/60Hz
Rated working current 16、 202532405063A
Rated residual operating current 0.03、0.10.30.5A
Rated residual un-operating current 0.015、0.050.150.25A
Sensibility A TypeAC Type
Maximum operating time I△n   t0.3s , 5In   t0.04s
Rated making and breaking capacity In≤50A   500A , In=63A   630A
Limiting value of un-operating current 6In
Rated limiting short-circuit current 6000A
Pole number 2,4P
Mechanical life 10000
Electric life 4000

16
