Best Guide To Different Types Of Circuit Breakers

Circuit breakers are key safety devices in electrical systems. They prevent damage from:

• Overloads
• Short circuits
• Electrical faults

As modern electrical networks grow more complex, understanding different types of circuit breakers becomes crucial for:

• Engineers
• Electricians
• Anyone involved in electrical maintenance or design

This guide provides a comprehensive overview of the various types of circuit breakers based on operation mechanism, voltage level, installation location, arc extinguishing medium, application, and standard compliance. Whether you are looking for information on different types of electrical circuit breakers, low-voltage circuit breakers, or all types of breakers, this article will be a reliable resource.

What is a Circuit Breaker?

A circuit breaker is an automatic electrical switch designed to protect an electrical circuit from damage caused by overload or short circuit. Unlike a fuse, which operates once and must be replaced after a fault, a circuit breaker can be reset manually or automatically to resume normal operation. Circuit breakers interrupt current flow when a fault is detected, thereby preventing potential hazards such as fires, equipment damage, or electrical shock.
Circuit breakers are classified and tested based on international standards like IEC and UL, which help define their performance, application, and compliance levels.

Different Types of Circuit Breakers

Circuit breakers can be categorized in various ways depending on their characteristics and applications. Below is a detailed classification.

Based on the Operation Mechanism

1. Manual-Operated Circuit Breakers

Manual breakers need someone to physically turn them on or off. They’re great for simple electrical systems or as emergency switches, giving you direct control. However, they don’t respond to faults automatically.

2. Thermal-Magnetic Circuit Breakers

These breakers are common in homes and businesses. They combine two key parts for fast and accurate fault detection:

• Thermal elements detect overloads.
• Magnetic elements respond to short circuits.

3. Remote-Controlled Circuit Breakers

Remote breakers can be operated from a distance using electrical signals or communication systems. This makes them perfect for applications where manual control isn’t an option, such as in automated smart grids.

4. Motor-Operated Breakers

These breakers have motor drives that enable automatic or remote switching. They are often used in industrial settings where large electrical loads need precise and frequent control.

Based on Voltage Level

Circuit breakers are categorized by their voltage levels. Here’s a breakdown of the main types:

1. Low-Voltage Circuit Breakers

These breakers protect circuits that operate below 1,000 volts. They are widely used in:

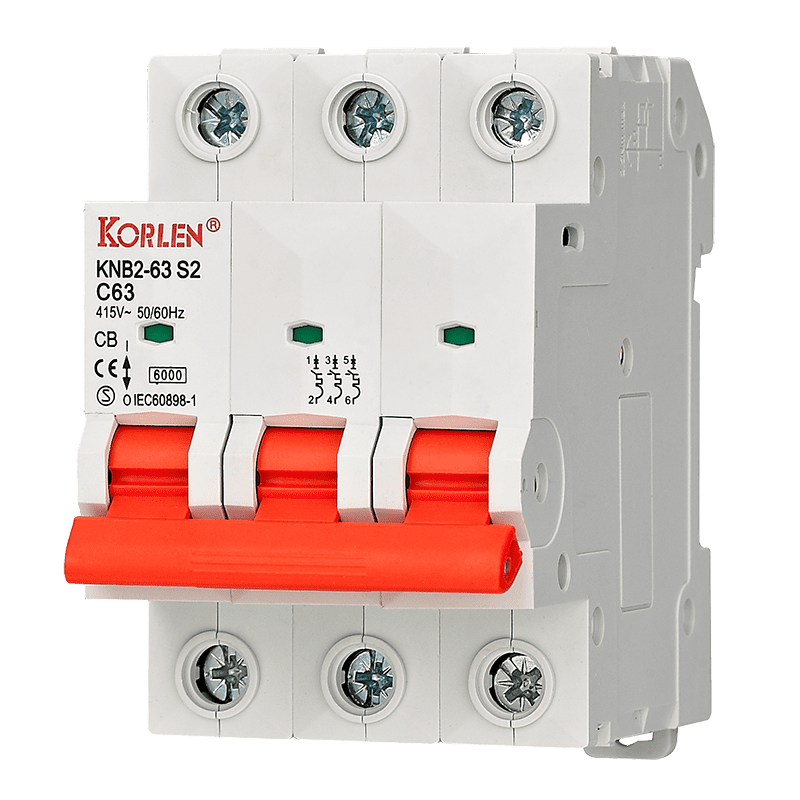

• Homes and commercial buildings (e.g., MCB, MCCB, ACB)
• Some industrial environments

2. Medium-Voltage Circuit Breakers

These operate in the 1 kV to 72.5 kV range. You can commonly find them in:

• Industrial plants
• Distribution substations (e.g., VCB, SF₆ Circuit Breakers)

3. High-Voltage Circuit Breakers

These are designed for circuits that operate above 72.5 kV. Their primary use is in:

• Utility power transmission
• Distribution networks (e.g., GIS, SF₆ Circuit Breakers, OCB)

Based on Installation Location

Circuit breakers can be designed for either indoor or outdoor use. Here’s how they differ:

1. Indoor Circuit Breakers

These are designed for installation inside buildings or controlled environments.

• Protection needed: From dust, moisture, and physical damage.
• Commonly found in: Residential, commercial, and industrial switchgear.

2. Outdoor Circuit Breakers

These are built to withstand harsh weather conditions, including:

• UV exposure
• Temperature variations
• Typically installed in: Substations and power transmission lines.

Based on Arc Extinguishing Medium

Circuit breakers use different methods to extinguish electrical arcs. Here are the main types based on their arc-quenching medium:

1. Air Circuit Breakers (ACBs)

These use air to extinguish the arc. They are perfect for low-voltage applications because of their simplicity and low cost.

2. Vacuum Circuit Breakers (VCBs)

VCBs use a vacuum to interrupt the arc. They offer fast arc interruption and minimal contact wear, making them a common choice for medium-voltage systems.

3. Oil Circuit Breakers (OCBs)

OCBs rely on insulating oil to quench the arc. They are effective in medium to high-voltage applications but need regular maintenance to check and replace the oil.

4. SF₆ Circuit Breakers

These use sulfur hexafluoride gas. SF₆ has excellent properties for arc-quenching, so these breakers are great for high-voltage applications. However, the gas requires careful handling due to its environmental impact.

Based on Application

Overload protection breakers are designed to interrupt the circuit when the current exceeds the rated load for a certain period, preventing equipment overheating. Short circuit protection breakers respond instantly to severe faults caused by short circuits, breaking the circuit to avoid damage and hazards. Earth leakage protection breakers detect leakage currents to earth and trip the circuit to prevent electric shock hazards and fire risks.

Based on Standard Compliance

The IEC 60898 standard applies to low-voltage miniature circuit breakers (MCBs) mainly used in household and similar installations. IEC 60947 covers low-voltage switchgear and control gear, including molded case and air circuit breakers for industrial and commercial use. IEC 61008 and IEC 61009 standards regulate residual current devices such as RCCBs and RCBOs, ensuring earth leakage protection in electrical installations.

Conclusion

Choosing the right type of circuit breaker is critical for the safety, reliability, and efficiency of electrical systems. From manual operated breakers to sophisticated motorized and remote-controlled models, from low voltage residential breakers to high voltage utility-grade switchgear, each type serves specific functions and environments. Understanding different types of circuit breakers and their unique features helps in making informed decisions to protect electrical circuits effectively. Whether you are seeking types of breakers for home, commercial, industrial, or utility use, this guide covers the key aspects to support your selection process.
