Isolator Switch 101 Function Types And Strategic Safety Integration

Introduction

In a professional power distribution system, “protection” and “isolation” are two distinct pillars of safety. While an RCBO breaker (Residual Current Breaker with Overcurrent) provides automatic defense against faults, it is an electronic device. For physical maintenance, you need a guaranteed mechanical break.

This is where the AC Isolator Switch becomes indispensable. As a leading DIN Rail Disconnect Switch Supplier, Korlen provides the “Physical Disconnect” required to ensure a circuit is 100% de-energized before a technician begins work.

How Does an Isolator Switch Work?

Unlike a residual current operated circuit breaker, which uses sensitive electronics to trip, an isolator switch relies on a robust mechanical air gap.

The Air Gap Principle

When you flip a Korlen AC Isolator Switch to the “OFF” position, the internal metallic contacts physically move apart by a distance specified by international safety standards. This ensures:

Zero Leakage: The specified distance between the separated metallic contacts eliminates the possibility of current arcing across the gap. Air acts as a natural insulator, and the standardized gap size is engineered to prevent even tiny leakage currents from jumping between contacts—this is crucial for avoiding electric shock risks during maintenance and ensuring the circuit is fully de-energized.



Visual Confirmation: The handle position of the Korlen AC Isolator Switch provides an unambiguous, at-a-glance status of the circuit’s state. Unlike some automated switches, the physical movement of the handle (typically from “ON” to “OFF” with a clear detent) leaves no room for ambiguity, allowing technicians to quickly confirm that the circuit is isolated before performing inspections, repairs, or equipment maintenance.



Manual Override: A key safety feature of Korlen AC Isolator Switches is that they cannot be reset by a remote signal, automatic timer, or external electrical trigger. This manual control ensures that only authorized technicians can re-engage the circuit, giving them complete control over the isolation process and preventing accidental re-energization while work is being performed on downstream equipment or circuits protected by MCCBs and MCBs.



Comparing the Essentials: Isolator Switch vs. RCBO Breaker

To optimize your procurement, it is vital to understand how these devices work together: the Isolator Switch (e.g., Korlen AC Isolator Switch) and RCBO serve distinct, non-interchangeable roles in electrical safety, especially when paired with MCCB molded case circuit breakers for comprehensive protection.

An Isolator Switch is a manual disconnection device, using the air gap principle to physically separate circuits when off—providing visual isolation and manual control for safe maintenance, with no fault protection.

In contrast, an RCBO is an automatic protective device, combining MCB and RCCB functions to trip on overcurrent or leakage, protecting people and equipment but lacking a visible isolation gap.

They work together: the Isolator Switch is installed upstream of the RCBO (and MCCBs in industrial setups) to isolate power during maintenance, while the RCBO monitors for faults. Understanding this ensures proper procurement and a safe, compliant power system.

Feature	Korlen AC Isolator Switch	Korlen RCBO Circuit Breaker
Primary Function	Manual Safety Disconnection	Automatic Fault Protection
Detection Type	None (Mechanical)	Leakage, Overload, & Short Circuit
Typical Use Case	Maintenance / Emergency Cut-off	Continuous Circuit Monitoring
Trigger Mechanism	Human Operator	Residual Circuit Current Breakers

Major Types of Isolation Switches & Their Applications

Choosing the right type of isolator depends on your environment and load requirements.

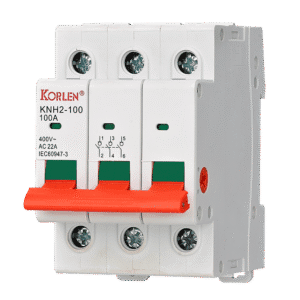

DIN-Rail Disconnect Switches

These are standard in residential and commercial distribution boards. As a premier DIN Rail Disconnect Switch Supplier, Korlen’s modular isolators fit perfectly alongside your breaker rcbo units, acting as the master “Incomer” switch for the entire panel.

Rotary Isolators (IP65 Weatherproof)

For outdoor machinery, HVAC systems, or solar inverters, a rotary isolator is mandatory. These feature rugged housings and lockable handles to comply with Lock-out Tag-out (LOTO) safety protocols.

Professional Installation: Wiring a RCBO with an Isolator

Properly wiring a rcbo in conjunction with an isolator is essential for a “fail-safe” system. The isolator is typically installed upstream of the protective breakers.

How to Connect RCBO and Isolator Switches



Main Isolation: The feed enters the Isolator Switch first. This allows the operator to shut down power to the entire busbar safely.



Circuit Protection: The output of the isolator feeds into the rcbo circuit breaker.



Correct Identification: When you connect RCBO units, always check the rcbo type symbols (Type A or AC) to ensure they match the load requirements of the specific branch.



Procurement Quality Standards: The Korlen Difference

When sourcing from a DIN Rail Disconnect Switch Supplier, compliance is your best insurance.



Korlen AC Isolators meet IEC/EN 60947-3 standards, ensuring they can handle heavy-duty switching cycles without contact welding.



Our residual current operated circuit breaker (RCBO) lines meet IEC/EN 61009-1, providing a coordinated protection strategy that eliminates “blind spots” in your electrical safety plan.



FAQs

Q1: How do you wire a rcbo if an isolator is already present? The RCBO should be wired downstream from the isolator. The isolator cuts all power, while the RCBO provides dedicated protection for the individual circuit.

Q2: Can I use an isolator switch for emergency stopping? Yes, high-quality breaker rcbo and isolator setups often use the isolator as a manual emergency disconnect because of its high-visibility handle.

Q3: What are the common rcbo type symbols I should know? Look for the sine wave (Type AC) for basic loads or the pulsating DC symbol (Type A) for modern electronic equipment.

Conclusion

Safety is a multi-layered strategy. By pairing the automatic precision of a residual current operated circuit breaker with the manual certainty of a Korlen AC Isolator Switch, you create an environment where both equipment and lives are protected.

Upgrade your distribution boards today— and ensure your projects are built on a foundation of safety.
