Circuit breakers are indispensable components in electrical systems, acting as guardians that protect equipment and personnel from potential hazards. While their fundamental purpose is the same – to interrupt the flow of electricity during a fault – Miniature Circuit Breakers (MCBs) and Moulded Case Circuit Breakers (MCCBs) serve distinct roles based on their capabilities and applications. Understanding these differences is crucial for selecting the right device for optimal protection and system efficiency.

What is a Circuit Breaker?

A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by overcurrent or short circuit. Its basic function is to detect a fault condition and interrupt current flow, thereby preventing damage to wiring, appliances, and ensuring safety. Unlike a fuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation after a fault has been cleared.

What is an MCB?

An MCB, or Miniature Circuit Breaker, is an automatic electrical switch used to protect low-voltage electrical circuits from overcurrents, which can result from either an overload or a short circuit. They are typically designed for lower current applications and offer non-adjustable trip characteristics. When a fault occurs, an MCB automatically trips, isolating the faulty part of the electrical system.

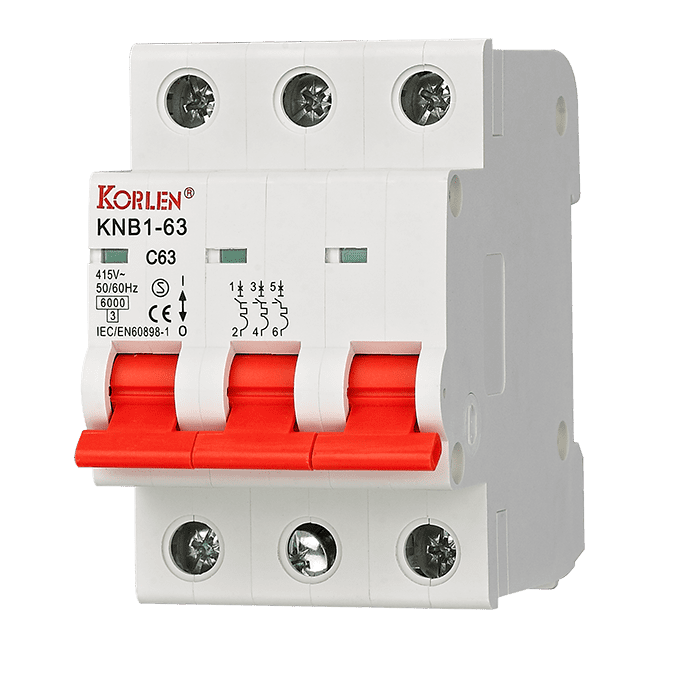

High Breaking Capacity MCB KNB1-63 C32-2

What is an MCCB?

An MCCB, or Moulded Case Circuit Breaker, is a type of electrical protection device that safeguards electrical circuits from overcurrents, overloads, and short circuits. MCCBs are designed for higher current applications compared to MCBs and often feature adjustable trip settings, providing more precise control and versatility. They are robust devices encased in a molded insulating material, capable of interrupting higher fault currents.

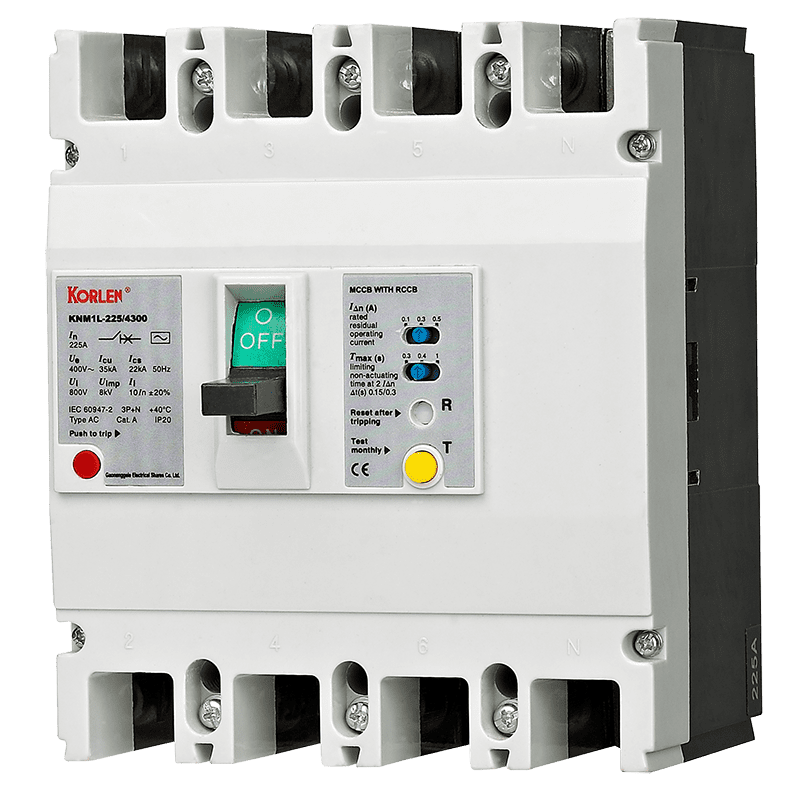

Moulded Case Circuit Breaker MCCB with CE CB KNM1-5

MCB vs MCCB: 9 Key Differences

Here’s a detailed comparison highlighting the fundamental distinctions between MCBs and MCCBs:

Feature Miniature Circuit Breaker (MCB) Moulded Case Circuit Breaker (MCCB)
1. Current Rating Typically up to 125 Amperes (A), commonly 63A or less. Ranges from 15 A to over 2500 A.
2. Breaking Capacity Lower, up to 15 kA, commonly 10kA or less. Higher, typically 10 kA to 100 kA, sometimes even higher.
3. Trip Characteristics Fixed trip settings, non-adjustable. Adjustable trip settings (thermal and magnetic), offering greater flexibility.
4. Application/Usage Residential, commercial buildings, light industrial, appliance circuits, low-capacity applications. Heavy industrial applications, large commercial buildings, main power distribution, motor protection, high-capacity systems.
5. Size & Construction Smaller, compact design (e.g., 17.5mm wide per pole). Available in 1, 2, 3, or 4 poles. Larger and more robust due to higher current and breaking capacity. Typically available in 3 or 4 poles.
6. Cost Generally lower cost due to simpler design and lower capacity. Significantly more expensive due to higher capacity and advanced features.
7. Protection Scope Primarily overload and short circuit protection for lower fault levels. Overload, short circuit, and sometimes ground fault protection for higher fault levels. Offers more comprehensive protection.
8. Auxiliary Features Limited or no auxiliary features; generally not equipped for remote operation. Can be equipped with a wide range of auxiliary features like shunt trips, undervoltage releases, alarm contacts, and remote operation capabilities.
9. Customization Minimal customization due to fixed trip settings. High degree of customization through adjustable trip units and various accessories to meet specific system requirements.

Choosing the Right Circuit Breaker: Factors to Consider

Selecting between an MCB and an MCCB depends on several critical factors related to your electrical system’s specific needs:

  • Current Load: Evaluate the maximum operating current of the circuit. MCBs are suitable for lower loads, while MCCBs are essential for heavy industrial equipment and main power distribution.
  • Fault Current Level: Determine the potential short-circuit current at the point of installation. MCCBs are designed to handle significantly higher fault currents.
  • Application Environment: Consider whether the application is residential, commercial, or industrial. This will heavily influence the required current rating and breaking capacity.
  • Adjustability Needs: If precise control over trip settings is required for coordination with other protection devices, an MCCB with adjustable features is necessary.
  • Budget: While cost is a factor, prioritizing safety and proper protection should always take precedence. Investing in the correct circuit breaker minimizes risks and long-term costs.
  • Space Constraints: MCBs are more compact, which can be advantageous in space-limited electrical panels.

At Korlen, we understand the importance of reliable circuit protection. We offer a comprehensive range of both Miniature Circuit Breakers and Moulded Case Circuit Breakers, engineered to meet diverse industrial and commercial needs. Our products are designed for durability, performance, and compliance with international standards, ensuring your electrical systems are safeguarded effectively.

Conclusion

Both MCBs and MCCBs are vital for electrical safety, yet they cater to different requirements within electrical distribution systems. MCBs are ideal for protecting smaller, lower-current circuits in residential and light commercial settings, offering straightforward, fixed protection. MCCBs, on the other hand, are robust, high-capacity devices with adjustable features, indispensable for protecting critical equipment and major power distribution lines in industrial and heavy commercial environments. By understanding their key differences, you can make informed decisions to ensure the safety, reliability, and efficiency of your electrical infrastructure.
