Electrical protection devices are essential for safe homes, offices, and industries. Two of the most common devices are fuses and miniature circuit breakers (MCBs). Both serve the same purpose—protecting circuits from overload and short circuits—but they work in very different ways.

This article explains the 15 key differences between fuse and miniature circuit breaker (MCB) in clear, simple terms. If you want to compare fuse and MCB for your project, this guide will help.

1. Basic Concepts & Working Principles

1.1 Fuse

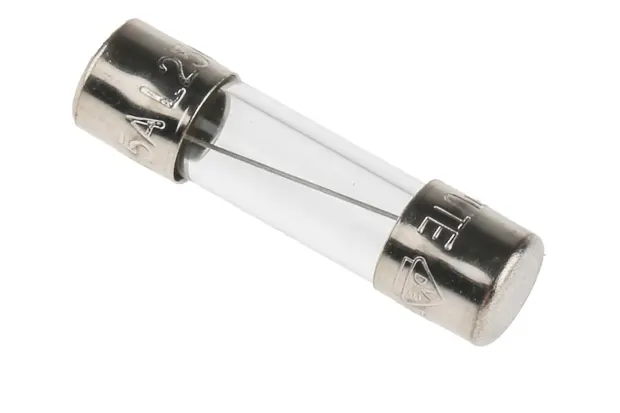

What is a Fuse?

A fuse is one of the oldest and simplest electrical protection devices. It consists of a small piece of metal wire or strip, usually made from copper, aluminum, zinc, or alloys with a low melting point. Its main job is to open the circuit automatically when current exceeds the rated value.

When the current is too high, the wire heats up and melts, breaking the circuit. This prevents further current flow and protects equipment from overheating or fire hazards.

How Does a Fuse Work?

The working principle of a fuse is based on the Joule heating effect:

• Normal current: The fuse wire carries current safely without overheating.

• Overcurrent/Overload: Heat builds up in the fuse element. If the overload continues, the element melts.

• Short-circuit: A sudden surge of current produces rapid heating, causing the fuse to blow almost instantly.

Once blown, the fuse cannot be used again. It must be physically replaced with a new one of the correct rating.

Key Characteristics of Fuses

• Fast operation in extreme faults, but slower than modern devices under certain conditions.

• One-time use only; requires replacement.

• Low initial cost, but higher long-term maintenance.

• Common in older installations, vehicles, and small appliances.

1.2 Miniature Circuit Breaker (MCB)

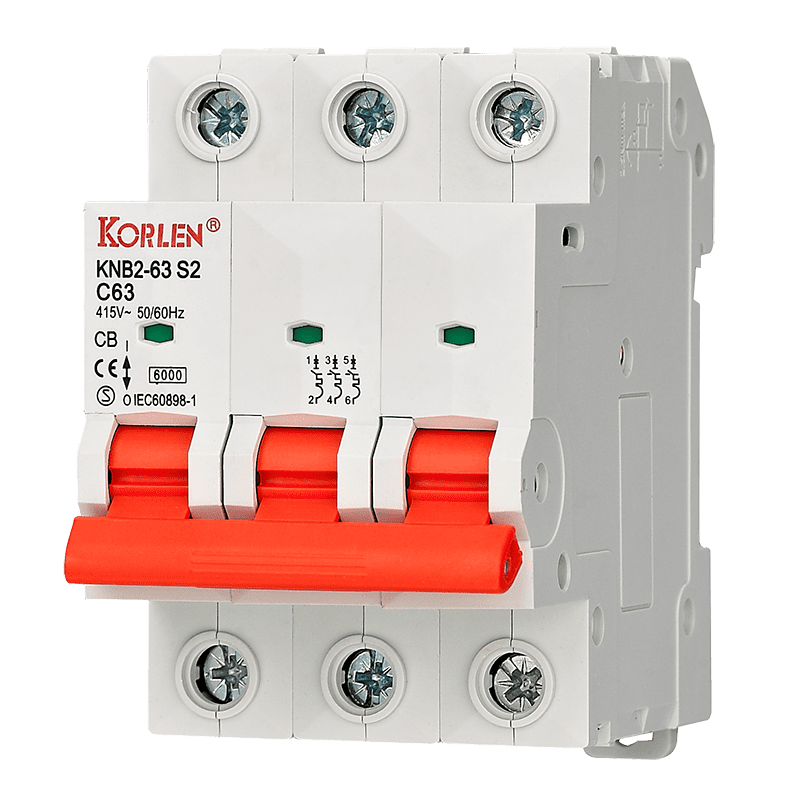

What is a Miniature Circuit Breaker (MCB)?

A miniature circuit breaker (MCB) is an automatic electrical switch designed to protect circuits from overloads and short circuits. Unlike a fuse, an MCB does not need replacement after tripping. It can simply be reset.

MCBs are widely used in residential, commercial, and industrial electrical systems. They are a key part of modern distribution boards.

Working Principle of an MCB

MCBs operate with two protective mechanisms:

1. Thermal Protection (for overloads)

   • Inside the MCB is a bimetallic strip.

   • When current exceeds the rated load for a period of time, the strip bends due to heating.

   • This bending action triggers the breaker to trip.

   • The delay prevents unnecessary tripping during temporary surges.

2. Magnetic Protection (for short circuits)

   • An electromagnetic coil is placed inside the breaker.

   • If a sudden short-circuit current flows, the coil produces a strong magnetic force.

   • This force instantly pulls a latch and opens the breaker.

   • The trip is almost instantaneous, providing quick safety.

Advantages of MCBs

• Resettable: No need to replace after tripping.

• Accurate: Available in different trip curves (B, C, D types) to match circuit requirements.

• Safer: Simple reset mechanism avoids human errors during replacement.

• Expandable: Can integrate with RCDs, GFCIs, and smart monitoring systems.

2. Reusability & Maintenance

2.1 One-time vs Resettable

Fuse
A fuse is a single-use device. When the metal element melts, it permanently breaks the circuit. Once this happens, the fuse has to be replaced with a new one of the correct rating. This one-time operation makes fuses less convenient in environments where faults may occur often.

Miniature Circuit Breaker (MCB)
An MCB is resettable. When a fault occurs, the breaker trips and interrupts the current. After fixing the problem, you can simply flip the switch back on. No spare parts are needed, and the protection device itself is preserved.

Key Takeaway

• Fuse: One-time use → higher replacement frequency.

• MCB: Resettable → more user-friendly and cost-effective.

2.2 Maintenance Process

Fuse
Maintenance for fuses can be time-consuming. When a fuse blows, the circuit must be shut down, the blown fuse located, and a new fuse installed. If the wrong type or rating is used, it can compromise system safety. This increases downtime and operational costs.

MCB
MCBs simplify maintenance. Once tripped, the breaker can be quickly reset by flipping the lever. This process reduces downtime to a few seconds. Because no physical replacement is required, the chance of error is much lower.

Key Takeaway

• Fuses: Require spare parts and manual replacement.

• MCBs: Quick, safe reset saves both time and labor.

3. Response Speed & Protection

3.1 Reaction Time

Fuse
A fuse works by melting its metal strip. While this process is effective, it is not always instantaneous. For overloads, the heating and melting may take a short time, meaning that protection is slightly delayed.

Miniature Circuit Breaker (MCB)
An MCB uses magnetic tripping for short circuits. This mechanism reacts almost instantly when a sudden surge occurs. For overloads, the thermal bimetal strip provides controlled delay, ensuring both accuracy and quick action.

Key Takeaway

• Fuse: Can be slower, especially for overloads.

• MCB: Faster in short-circuit events, offering better protection for modern systems.

3.2 Accuracy

Fuse
Fuses provide general protection. Their rating is fixed, and they cannot be adjusted for different load conditions. This means a fuse protects, but without flexibility.

MCB
MCBs are available in different trip curves (B, C, D types). This allows precise matching to the nature of the load. For example, sensitive devices may use B-curve MCBs, while heavy motors may need D-curve. This flexibility makes MCBs more accurate.

Key Takeaway

• Fuse: Basic, fixed protection.

• MCB: Customizable, more precise for different loads.

4. Safety Comparison

4.1 Replacement Risks

Fuse
When a fuse blows, it must be replaced manually. Using the wrong fuse rating is a common mistake that can reduce protection or cause further hazards. Handling live circuits during replacement can also be dangerous.

MCB
An MCB eliminates this risk. Once it trips, resetting is simple and safe. There is no need to handle internal wiring or choose ratings repeatedly.

Key Takeaway

• Fuse: Replacement can be unsafe and error-prone.

• MCB: Resetting is safe and straightforward.

4.2 Misoperation Risks

Fuse
Human error is the biggest risk with fuses. Choosing a higher-rated fuse “to avoid nuisance blowing” can compromise safety. Incorrect installation can also create fire hazards.

MCB
An MCB avoids such misuse. Its rating is built-in, and its trip curve ensures correct operation. The reset process is clear and user-friendly.

Key Takeaway

• Fuse: Prone to human mistakes during replacement.

• MCB: Safer with less chance of misuse.

5. Cost & Economic Factors

5.1 Initial Purchase Cost

Fuse
Fuses are cheaper when purchased. Their simple design and low material use make them cost-effective in the short term.

MCB
MCBs are more expensive upfront. The internal thermal-magnetic mechanism makes them a higher investment at the start.

Key Takeaway

• Fuse: Low upfront cost.

• MCB: Higher initial investment.

5.2 Long-term Operating and Maintenance Costs

Fuse
Each time a fuse blows, it must be replaced. This requires spare parts, storage, and labor. In frequent-fault environments, these costs add up quickly.

MCB
MCBs are resettable. There are no replacement parts needed, so the only cost is the original purchase. Over time, this reduces operating costs significantly.

Key Takeaway

• Fuse: Frequent replacement = higher maintenance costs.

• MCB: Lower ongoing costs due to reusability.

5.3 Overall Lifecycle Cost Analysis

When we include all costs—purchase, replacement, downtime, and labor—MCBs are more economical. While fuses look cheaper at first, MCBs save money in the long run by avoiding downtime and replacement expenses.

Key Takeaway

• Fuse: Economical only in simple, low-use systems.

• MCB: More cost-effective over the full lifecycle.

6. Application Scenarios

6.1 Traditional vs Modern Uses

Fuse
Fuses are common in older homes, small appliances, cars, and simple circuits. Their low cost makes them suitable for devices where replacement is not a big issue.

MCB

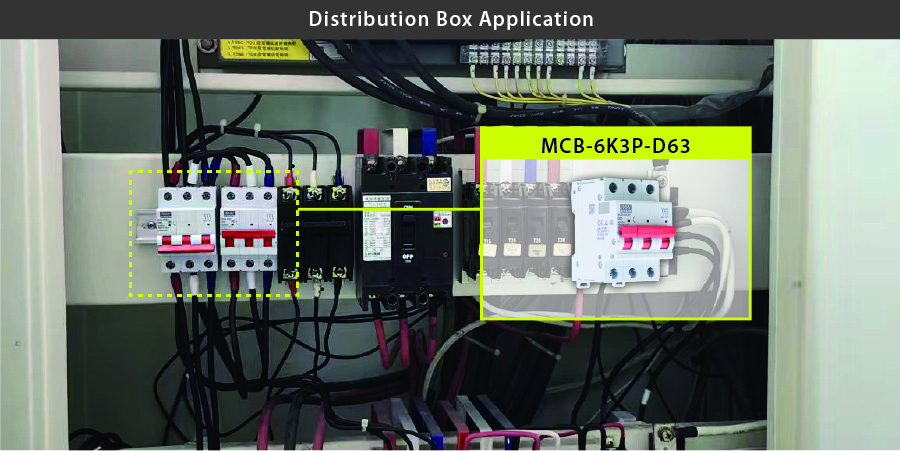

MCBs are standard in modern residential, commercial, and industrial distribution boards. They meet stricter safety standards and provide advanced protection.

Key Takeaway

• Fuse: Best for older or simple applications.

• MCB: Standard choice for modern installations.

6.2 Combined Use

In some systems, both devices are used together.

• A fuse may protect specific equipment (like motors or electronics).

• An MCB provides main circuit protection for the distribution line.

This layered protection ensures maximum safety and reliability.

Key Takeaway

• Fuse + MCB combination: Enhanced system protection in some designs.

7. Advanced Features & Future Adaptability

7.1 Additional Protection Features (GFCI, AFCI, etc.)

Fuse
Fuses are simple. They cannot provide additional protections such as ground fault detection or arc fault protection.

MCB
MCBs can integrate with Ground Fault Circuit Interrupters (GFCI) and Arc Fault Circuit Interrupters (AFCI). These features protect against electric shocks and hidden wiring faults. Some MCBs also connect with smart monitoring systems for remote diagnostics.

Key Takeaway

• Fuse: No advanced features.

• MCB: Flexible integration with modern safety systems.

7.2 Modularity and System Upgrade Potential

Fuse
Fuses are standalone devices. Once installed, they are not modular or upgradeable. Any change requires physical replacement of the fuse unit.

MCB
MCBs are modular components of distribution boards. They can be easily added, replaced, or upgraded. Smart MCBs are now available, supporting digital monitoring and IoT systems.

Key Takeaway

• Fuse: Limited adaptability, no modularity.

• MCB: Modular, scalable, and future-ready.

8. Summary Table & Conclusion

Summary Table: Fuse vs MCB – 15 Key Differences

Aspect	Fuse	Miniature Circuit Breaker (MCB)
Working Principle	Melting of metal wire/strip	Thermal (bimetal) + Magnetic (coil)
Reusability	One-time use, must be replaced	Resettable, reusable many times
Maintenance	Manual replacement, spare parts needed	Quick reset, no spare parts needed
Reaction Time	Slower for overloads	Faster, especially for short circuits
Accuracy	Fixed, basic protection	Adjustable trip curves (B, C, D)
Replacement Risks	Risk of wrong rating, unsafe handling	Safer, simple reset
Misoperation Risks	High risk of human error	Minimal, built-in rating prevents misuse
Initial Cost	Low upfront price	Higher upfront price
Long-term Cost	High (frequent replacements)	Low (reusable, minimal downtime)
Lifecycle Cost	Economical only in very simple systems	More cost-effective over time
Applications	Older homes, small devices, vehicles	Modern homes, offices, industries
Combined Use	Often paired with MCBs for device-level protection	Used as main distribution protection
Advanced Features	None	Can integrate with GFCI, AFCI, smart monitoring
Modularity	Not modular	Modular, easy to upgrade
Future Adaptability	Limited	Scalable and IoT-ready

Conclusion

When we compare fuse and MCB, the differences are clear:

• Fuses are simple, cheap, and effective for basic protection. But they are one-time use devices, need manual replacement, and increase long-term costs.

• MCBs are safer, reusable, and more accurate. They provide quick response, advanced protection options, and better adaptability for modern systems.

From a lifecycle perspective, MCBs are the preferred choice for modern residential, commercial, and industrial installations. Fuses remain useful in low-cost or older applications, but miniature circuit breaker VS fuse – the winner for today’s safety and economy is the Miniature Circuit Breakers(MCB).
