Moulded Case Circuit Breaker Applications In Industrial And Commercial Systems

1. Introduction

In modern electrical distribution networks, ensuring reliable protection against overloads, short circuits, and equipment failures is critical. The Moulded Case Circuit Breaker (MCCB) plays a vital role in industrial and commercial systems, offering flexibility, safety, and robust performance. This article explores MCCB applications, its advantages, types, and selection guide to help you understand why MCCBs are indispensable in large-scale power distribution.

2. What is Moulded Case Circuit Breaker?

2-1 Definition of a Moulded Case Circuit Breaker

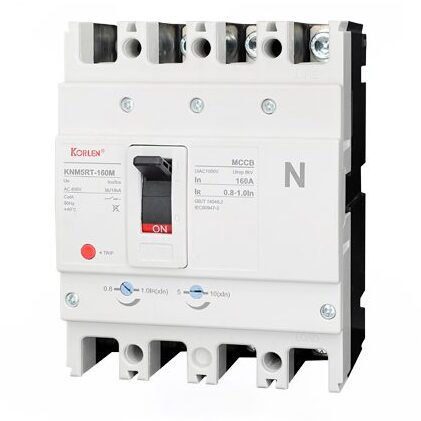

A Moulded Case Circuit Breaker (MCCB) is an electrical protection device designed to safeguard circuits from overloads, short circuits, and equipment faults. Its housing is made of a moulded insulating material that provides mechanical strength and insulation.

2-2 Core Functions: Overload and Short Circuit Protection

Overload protection: Prevents overheating when electrical load exceeds rated current.

Short circuit protection: Rapidly interrupts current flow during faults to prevent damage or fire.

2-3 Quick Comparison with MCB

MCB (Miniature Circuit Breaker): Used for low current ratings (households, small loads).

MCCB: Handles higher current capacities, making it suitable for industrial and commercial systems.

3. Advantages of Moulded Case Circuit Breaker

3-1 High Breaking Capacity for Large Current Applications

MCCBs can handle high fault currents, ensuring reliability in heavy-duty distribution systems.

3-2 Multiple Protection Features

They combine MCCB overload and short circuit protection in one device, offering comprehensive safety.

3-3 Flexibility and Adjustable Trip Settings

Many MCCBs have adjustable trip units, allowing customization to match specific system requirements.

3-4 Enhanced MCCB Safety in Power Distribution

Reduces risks of electrical fires.

Protects equipment and personnel.

Improves system stability by isolating faults quickly.

4. Types of Moulded Case Circuit Breaker

4-1 Fixed Type MCCB

Permanently mounted in panels.

Cost-effective and simple to maintain.

4-2 Plug-in Type MCCB

Can be inserted or removed easily.

Ideal for systems requiring quick replacement.

4-3 Withdrawable/Draw-out Type MCCB

Mounted on a sliding mechanism for maintenance without full disconnection.

Common in large-scale industrial systems.

4-4 Typical Use Cases

Fixed type: Small factories, commercial lighting.

Plug-in type: Medium-sized distribution systems.

Withdrawable type: Power plants, heavy industries, large data centers.

5. MCCB Applications in Industrial Systems

5-1 MCCB for Industrial Applications

Factories, manufacturing plants, and production facilities require robust MCCB protection for machinery and high-power motors.

5-2 Reliability in Large-Scale Distribution Systems

MCCBs ensure stable power supply in industries with heavy electrical loads and frequent start-up surges.

5-3 Example: Protection for Motors and Equipment

In a manufacturing line, MCCBs protect motors from overcurrent and short circuits, preventing costly downtime.

6. MCCB Applications in Commercial Buildings

6-1 MCCB for Commercial Buildings

In shopping malls, office towers, hospitals, and educational facilities, MCCBs provide safe and reliable protection for diverse electrical loads.

6-2 Ensuring Safety for Key Systems

Lighting systems: Prevent blackouts and equipment damage.

Elevators and escalators: Ensure passenger safety.

HVAC systems: Maintain uninterrupted climate control.

6-3 Contribution of MCCBs in Industrial and Commercial Systems

By ensuring stability and efficiency, MCCBs reduce downtime, protect critical equipment, and safeguard lives in industrial and commercial infrastructures.

7. MCCB Selection Guide

7-1 How to Choose the Right MCCB

When selecting a moulded case circuit breaker, consider:

Current rating: Match to load requirements.

Voltage class: Ensure compatibility with system voltage.

Breaking capacity: Choose according to expected fault currents.

7-2 Recommendations for Industrial vs Commercial Needs

Industrial systems: Require MCCBs with higher breaking capacity and adjustable trip units.

Commercial systems: Standard MCCBs with reliable protection for lighting, HVAC, and general loads.

8. Conclusion

The Moulded Case Circuit Breaker (MCCB) is a cornerstone of industrial and commercial electrical systems. With its high breaking capacity, adjustable protection settings, and safety features, MCCBs provide superior protection against overloads and short circuits.
Whether in factories, manufacturing plants, shopping malls, or hospitals, MCCBs ensure system efficiency, reliability, and safety. When properly selected and applied, MCCBs deliver long-term performance and peace of mind in modern power distribution.
