In today’s electrically driven world, safety is paramount. Every building, from a cozy home to a sprawling industrial complex, relies on a robust electrical system. But what happens when things go wrong? Overloads, short circuits, and ground faults can lead to serious hazards, including fires and electric shocks. This is where circuit breakers come in, acting as essential guardians of your electrical infrastructure.

You’ve probably heard terms like MCB, MCCB, RCB, RCD, RCCB, and RCBO thrown around, but what do they all mean? And more importantly, which one is right for your specific needs? This comprehensive guide will demystify these crucial devices, helping you understand their functions, differences, and how to choose the best protection for your property.

The Fundamentals of Circuit Protection

Before diving into the specifics of each breaker type, let’s understand the core principles of circuit protection. Electrical protection devices are designed to automatically interrupt the flow of electricity when an anomaly is detected. This interruption prevents damage to equipment, wiring, and most importantly, protects people from electrical hazards.

The main types of faults these devices protect against are:

  • Overload: When too much current flows through a circuit, exceeding its safe limit. This can happen if too many appliances are plugged into one outlet.
  • Short Circuit: Occurs when there’s an unintended path for current to flow, typically due to faulty wiring or insulation breakdown. This results in a sudden, massive surge of current.
  • Earth/Ground Fault: This happens when current leaks from the live conductor to the earth, often due to damaged insulation or a person touching a live part. This is where devices like RCDs and RCCBs shine, as they detect even small leakage currents that traditional breakers might miss, preventing electric shock.

Demystifying Each Type of Breaker

Let’s break down each acronym and understand its unique role in electrical safety.

MCB

MCBs are the most common type of circuit breaker found in residential and light commercial applications. They are designed to protect against overload and short circuits.

  • Function: An MCB trips and cuts off the electrical supply when the current exceeds a predetermined safe limit (overload) or when there’s a sudden surge in current (short circuit).
  • Key Features: Available in various current ratings (e.g., 6A, 10A, 16A, 32A, 63A). They are typically used for individual circuits like lighting, power outlets, and small appliances.
  • Advantages: Compact size, easy to reset, and provide reliable protection for common electrical faults.

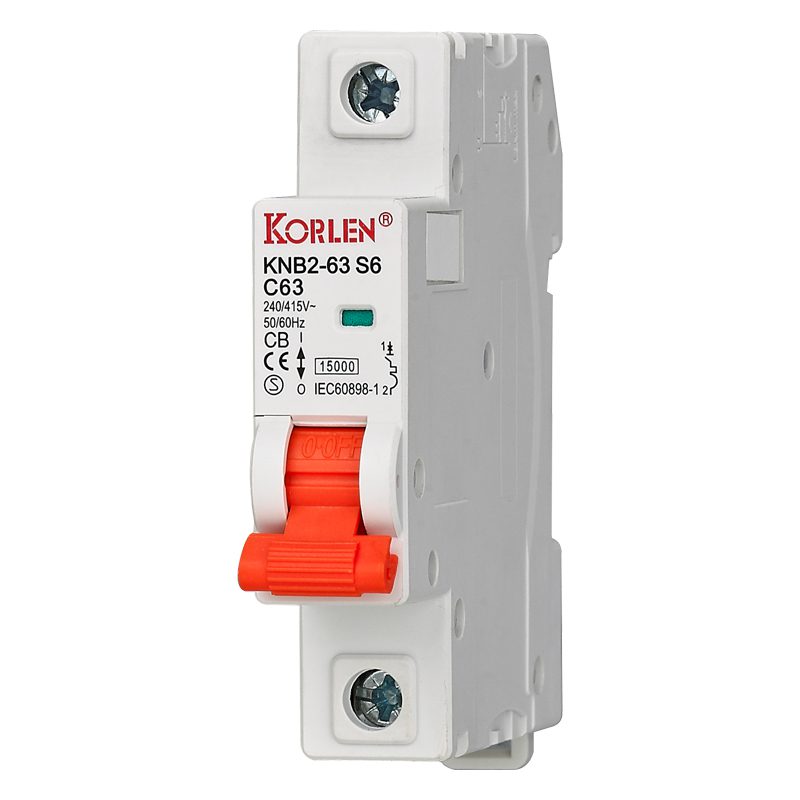

15KA High performance MCB KNB2-63S6-2

MCCB

MCCBs are more robust than MCBs and are used in larger commercial and industrial settings. Like MCBs, they protect against overload and short circuits, but they can handle much higher currents and fault levels.

  • Function: MCCBs provide protection for heavy-duty applications, main incoming supplies, and large motors. Their tripping characteristics can often be adjusted, offering greater flexibility.
  • Key Features: Available in a wide range of current ratings, from tens of amps to thousands of amps. Their “moulded case” refers to the durable, insulated housing that encloses the breaker components.
  • Advantages: High breaking capacity, adjustable trip settings (in some models), and suitable for demanding environments.

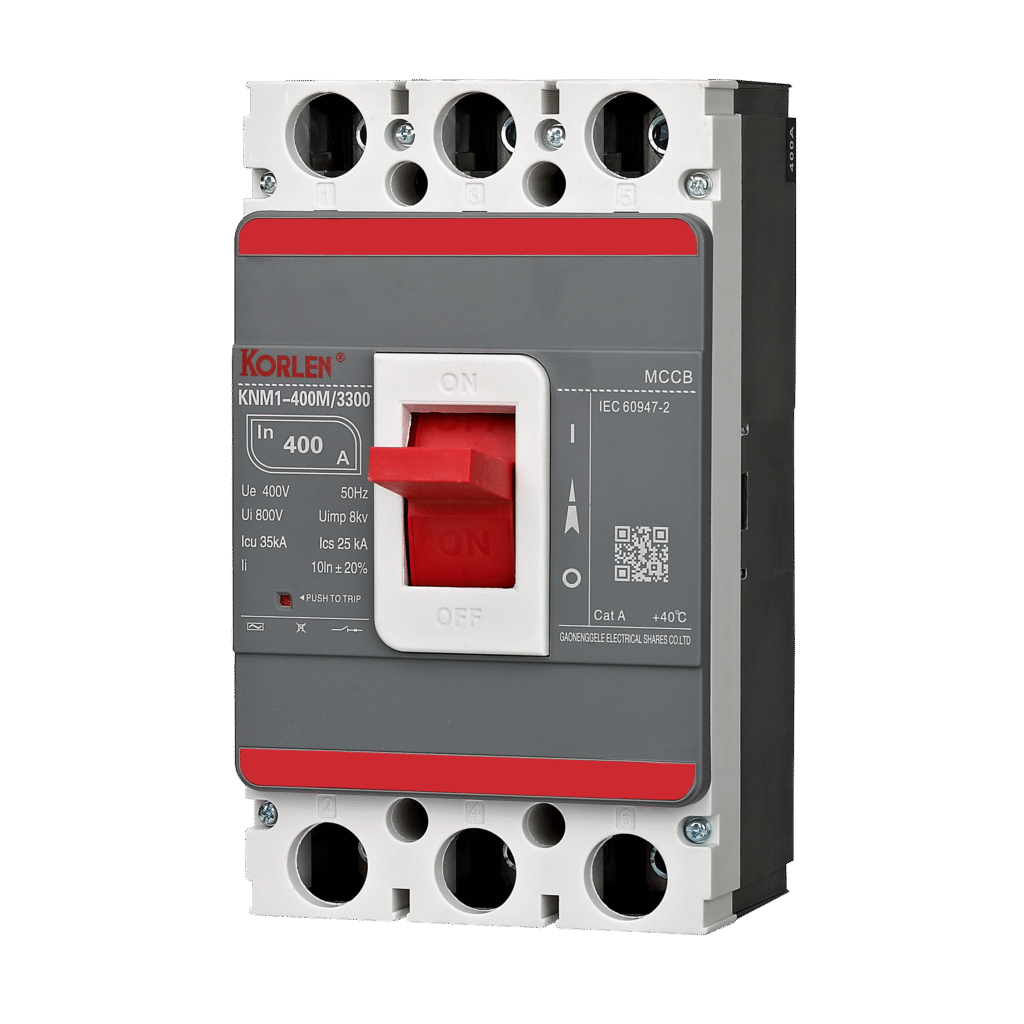

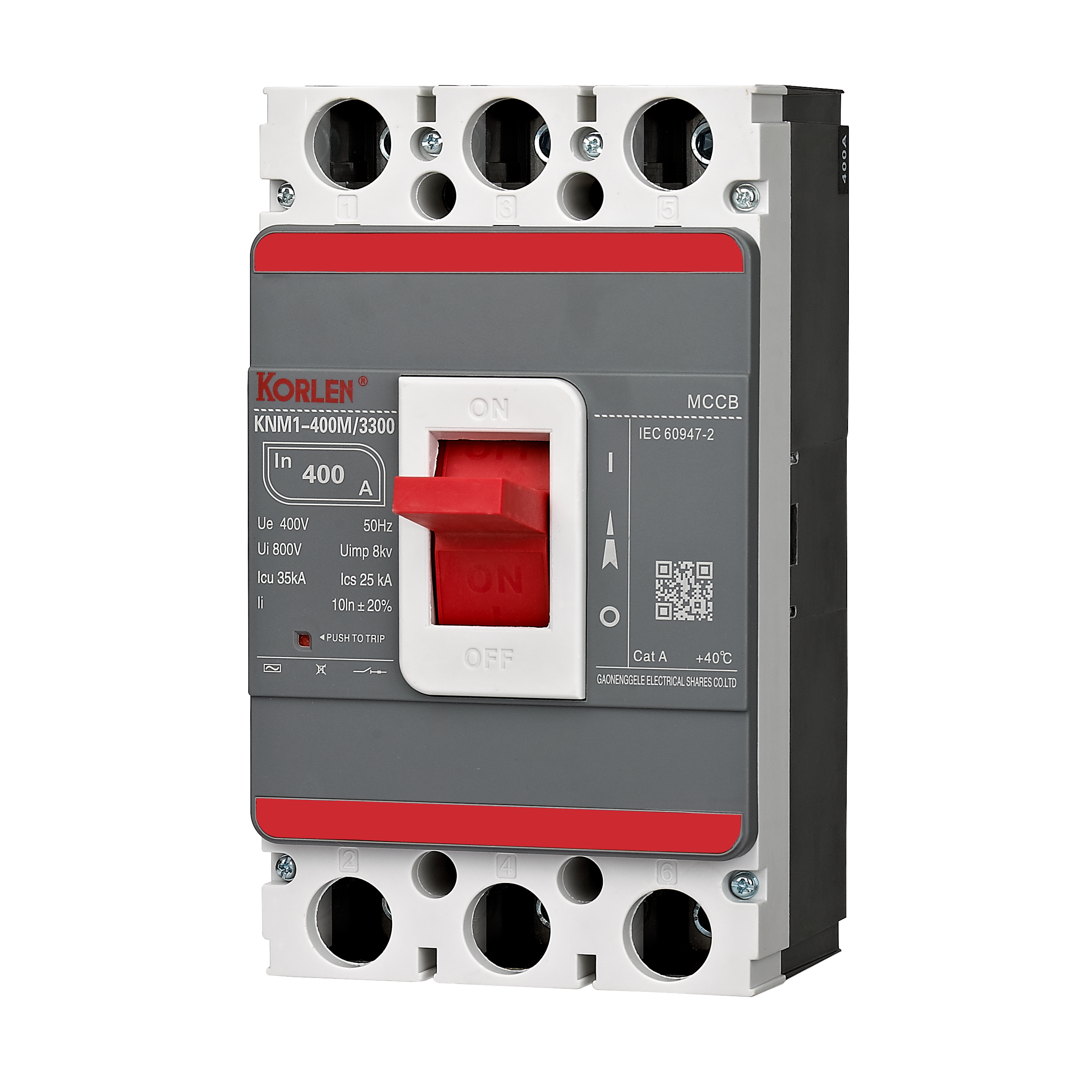

Moulded Case Circuit Breaker MCCB with CE CB KNM1-1

RCB, RCD, and RCCB

These terms are often used interchangeably and refer to devices that specifically protect against earth/ground faults, primarily to prevent electric shock. They do not protect against overloads or short circuits.

  • Function: These devices constantly monitor the current flowing in the live and neutral wires. In a healthy circuit, the current flowing out through the live wire should equal the current returning through the neutral wire. If there’s an imbalance (meaning some current is leaking to earth, potentially through a person), the RCD/RCCB quickly trips, cutting off the supply.
  • Key Features: Extremely sensitive, typically tripping at very small leakage currents (e.g., 30mA for personal protection).
  • Advantages: Essential for personal safety, preventing fatal electric shocks. They are mandatory in many building codes for specific circuits (e.g., bathrooms, outdoor sockets).
  • Note: While RCB is a general term, RCD and RCCB are more precise. RCCB is the more commonly used term in many parts of the world, specifically referring to a Residual Current Circuit Breaker that only detects residual current.

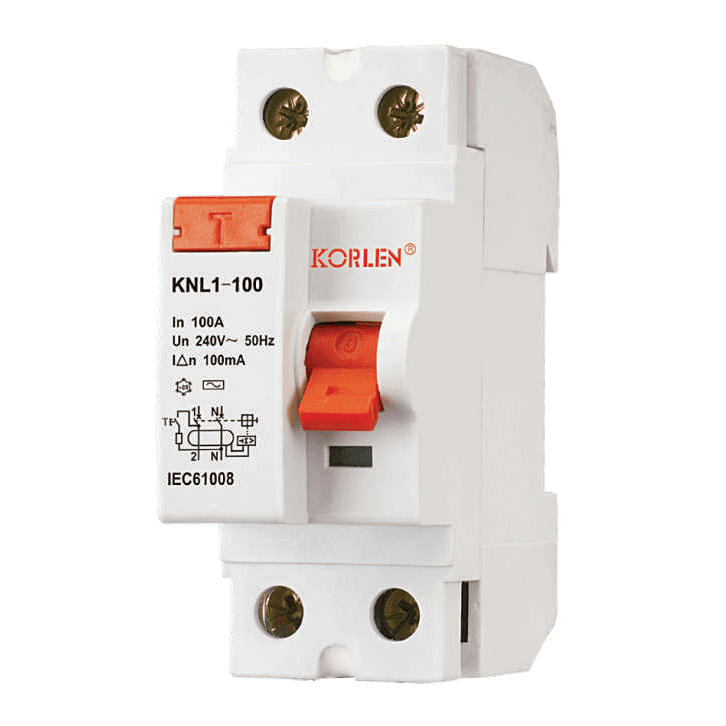

Residual Current Circuit Breaker RCCB KNL1-100 3ka 100A CB-2

RCBO

The RCBO is an all-in-one protection device. It combines the functions of an MCB (overload and short circuit protection) and an RCD/RCCB (earth fault protection) into a single unit.

  • Function: An RCBO provides comprehensive protection against all three major electrical faults: overload, short circuit, and earth leakage.
  • Key Features: Space-saving, as it eliminates the need for separate MCBs and RCDs for individual circuits. If one circuit experiences a fault, only that specific RCBO trips, leaving other circuits unaffected.
  • Advantages: Complete protection in a compact form, enhanced fault localization, and increased safety.

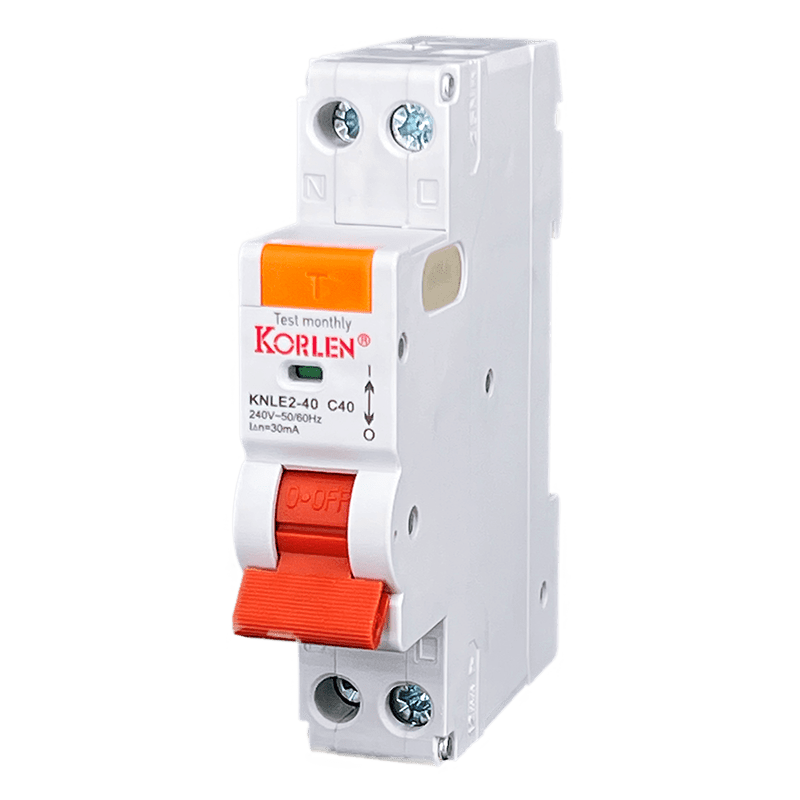

A Type AC Type 18mm RCBO KNLE2-40-1

Comparison Table: MCB vs. MCCB vs. RCB/RCD/RCCB vs. RCBO

Understanding the key differences at a glance can be incredibly helpful.

Feature MCB MCCB RCB/RCD/RCCB RCBO
Primary Protection Overload, Short Circuit Overload, Short Circuit Earth/Ground Fault (Electric Shock) Overload, Short Circuit, Earth/Ground Fault
Current Rating Low to Medium (up to ~125A) Medium to High (up to several thousand A) Low to Medium (typically up to ~100A) Low to Medium (up to ~63A)
Application Residential, Light Commercial Commercial, Industrial, Main Distribution Residential, Commercial (for shock protection) Residential, Commercial (all-in-one circuit protection)
Reset Manual Switch Manual Switch Manual Switch Manual Switch
Adjustable Trip No Yes (on some models) No (fixed sensitivity) No (fixed sensitivity and overcurrent rating)
Size Compact Larger and bulkier Compact Compact (combines two functions)
Cost Economical More Expensive Moderately Priced More Expensive than MCB or RCCB individually

How to Choose the Right Circuit Breaker for Your Needs

Selecting the appropriate circuit breaker depends on several factors, including the type of building, the electrical load, and specific safety requirements.

  1. Identify the Load:
    • For lighting, general power outlets, and small appliances in homes, MCBs are typically sufficient for overcurrent protection.
    • For heavy machinery, main distribution boards, and large commercial installations, MCCBs are essential due to their higher current ratings and breaking capacities.
  2. Assess Shock Hazard:
    • For areas where there’s a higher risk of electric shock (e.g., bathrooms, kitchens, outdoor areas, circuits supplying portable equipment), RCDs/RCCBs are crucial for personal protection. They are mandatory in many modern wiring regulations.
  3. Consider Space and Convenience:
    • If space is limited in your consumer unit or distribution board, or if you prefer a streamlined approach to protection, RCBOs offer a compact, all-in-one solution for individual circuits. They also simplify fault finding, as only the affected circuit trips.
  4. Consult Regulations:
    • Always ensure your chosen devices comply with local electrical codes and regulations. These standards are designed to ensure maximum safety.

At Korlen, we understand the complexities of electrical safety. We offer a comprehensive range of high-quality circuit protection devices, including MCBs, MCCBs, RCDs, RCCBs, and RCBOs, engineered to meet the highest safety standards and provide reliable performance for both residential and commercial applications. Our experts are always available to help you select the perfect solution for your specific project, ensuring optimal safety and efficiency.

Conclusion

Understanding the differences between MCB, MCCB, RCB, RCD, RCCB, and RCBO is not just technical jargon; it’s fundamental to ensuring electrical safety in any environment. Each device plays a vital, distinct role in protecting against different types of electrical faults, from overloads and short circuits to dangerous earth leakages.

By choosing the right circuit breaker for the right application, you’re not just installing a piece of equipment – you’re investing in peace of mind, safeguarding your property, and most importantly, protecting lives. Don’t compromise on electrical safety.

Do you have specific questions about which circuit breaker is best for your unique project, or are you looking for reliable, high-performance protection devices? Contact Korlen today to speak with one of our electrical safety specialists.
