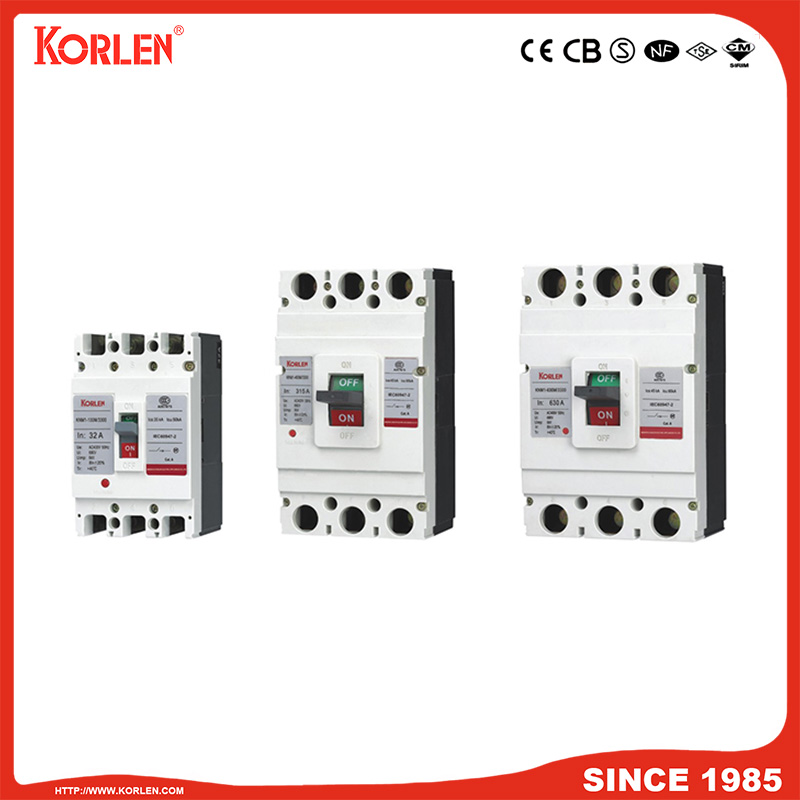

KNM1 series moulded case circuit breaker(hereafter reffered to as simply breaker) The rated insulation voltage of the breaker is 800v (KNM1-63 is 500v),suitable for turn-on or turn off not frequency and starting a motor not frequently in the circuit of AC 50hz,rated working voltage 690V or bellow (KNM1-63 is 400v)-rated working current up to800A (KNM1-800 is motor protection-free), The breakers have overload, short -circuit andunder voltage protection devices, so as to protect the circuit and the power equipment against damage.Breakers could be installed vertically(upright) or horizontally (transverse);
Breakers has disconnecting function, its corresponding symbol is shown as “fuhao”;
Breakers comply with demands of following standards
IEC60947-1 and GB/T14048.1-2000 general
IEC60947-2 and GB/T14048.1-2001 low voltage breakers
IEC60947-4-1 and GB/T14048.4-2003 mechanical contactors and motor starters
IEC60947-5-1 and GB/T14048.5-2001 electrical equipments of electromechanical control circuit
KNM1 series moulded case circuit breaker(hereafter reffered to as simply breaker) The rated insulation voltage of the breaker is 800v (KNM1-63 is 500v),suitable for turn-on or turn off not frequency and starting a motor not frequently in the circuit of AC 50hz,rated working voltage 690V or bellow (KNM1-63 is 400v)-rated working current up to800A (KNM1-800 is motor protection-free), The breakers have overload, short -circuit andunder voltage protection devices, so as to protect the circuit and the power equipment against damage.Breakers could be installed vertically(upright) or horizontally (transverse);
Breakers has disconnecting function, its corresponding symbol is shown as “fuhao”;
Breakers comply with demands of following standards
IEC60947-1 and GB/T14048.1-2000 general
IEC60947-2 and GB/T14048.1-2001 low voltage breakers
IEC60947-4-1 and GB/T14048.4-2003 mechanical contactors and motor starters
IEC60947-5-1 and GB/T14048.5-2001 electrical equipments of electromechanical control circuit
Type | Frame (lnm) | Rated Current(A) | Rated working voltage(V) | Rated insulation voltage | Rated limiting short-circuit breaking ability KA 400V | Rated operating short-circuit breaking ability KA 400V | Outline dimensions | Mounting dimensions | ||||
L | W 3p/4p | H | A | B | 4-Φd | |||||||
KNM1-63L | 63 | (6),10,16,20,25,32,40,50,63 | AC400V | 500V | 25 | 18 | 135 | 78 | 73.5 | 25 | 117 | Φ3.5 |
KNM1-63M | 50 | 35 | 135 | 78/103 | 81.5 | |||||||
KNM1-100L | 100 | (10),16,20,25,32,40,50,63,80,100 | AC400V | 690V | 35 | 18 | 150 | 92 | 68 | 30 | 129 | Φ4.5 |
KNM1-100M | 50 | 35 | 150 | 92/122 | 86 | |||||||
KNM1-100H | 85 | 50 | ||||||||||
KNM1-160L | 160 | 100,125,140,160 | AC400V | 690V | 35 | 22 | 165 | 107 | 86 | 35 | 126 | Φ4.5 |
KNM1-160M | 50 | 35 | 165 | 107/142 | 103 | |||||||
KNM1-160H | 85 | 50 | ||||||||||
KNM1-225L | 225 | 100,125,140,160,180,200,225 | AC400V | 690V | 35 | 22 | 165 | 107 | 86 | 35 | 126 | Φ4.5 |
KNM1-225M | 50 | 35 | 165 | 107/142 | 103 | |||||||
KNM1-225H | 85 | 50 | ||||||||||

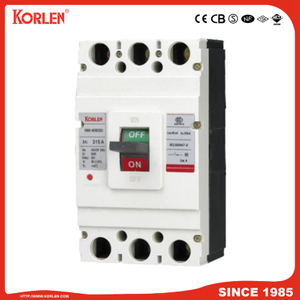

KNM1-400L | 400 | 225,250,315,350,400 | AC400V | 690V | 42 | 35 | 257 | 150/198 | 105 | 44 | 194 | Φ7 |
KNM1-400M | 62 | 50 | 257 | 150/198 | 105 | 44 | 194 | Φ7 | ||||
KNM1-400H | 100 | 65 | ||||||||||

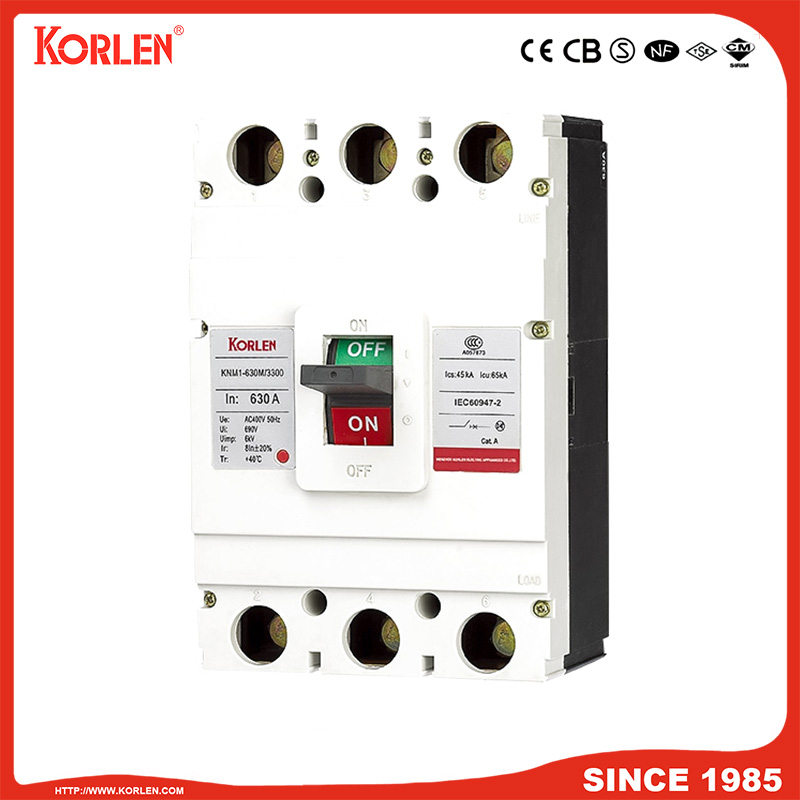

KNM1-630L | 630 | 400,500,630 | AC400V | 690V | 42 | 35 | 270 | 182/240 | 110 | 58 | 200 | Φ7 |
KNM1-630M | 65 | 50 | 270 | 182 | 110 | 58 | 200 | Φ7 | ||||
KNM1-630H | 100 | 65 | ||||||||||
KNM1-800M | 800 | 630,700,800 | AC400V | 690V | 75 | 50 | 275 | 210 | 103 | 70 | 243 | Φ7 |
KNM1-800H | 100 | 65 |
