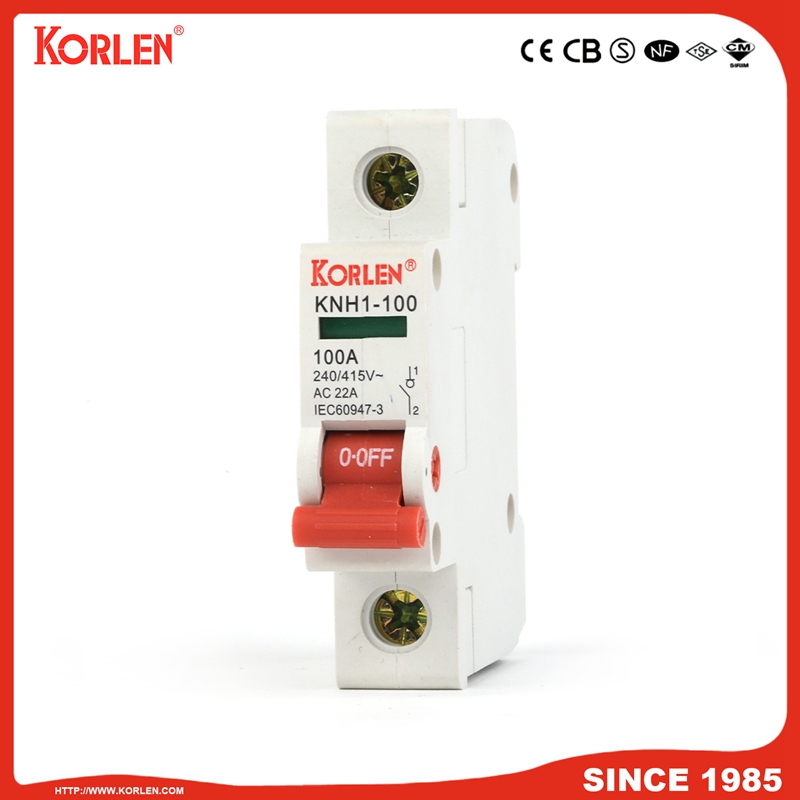

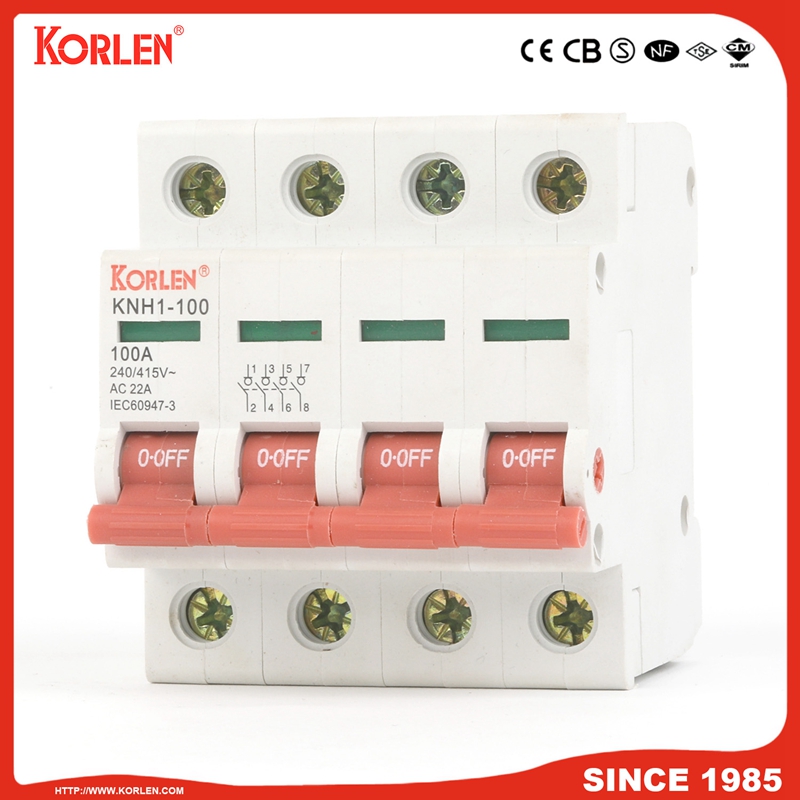

KNH1-100
Korlen
1. Technical Data
Electrical Features | |
Rated voltage Ue: | 240/415V |
Rated current le: | 32, 40, 50, 63, 80, 100, 125A |
Poles: | 1P, 2P, 3P, 4P |
Rated frequency: | 50/60Hz |
Rated impulse withstand voltage (1.2/50)Uimp: | 4, 000V |
Rated short-time withstand current lcw: | 12le, 1s |
Rated making and breaking capacity: | 3le, 1.05Ue, cos Φ =0.65 |
Rated short circuit making capacity: | 20le, t=0.1s |
Dielectric test voltage at ind. Freq. For 1min: | 2.5kV |
nsulation voltage Ui: | 500V |
Pollution degree: | 2 |
Uilization category: | AC-22A |
Mechanical Features | |
Electrical life: | 1, 500 |
Mechanical life | 8, 500 |
Protection degree: | IP20 |
Ambient temperature (with daily average35): | |
Storage temperation: | -25º C...+70º C |
2. Installation.
Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 50mm2
Terminal size top/bottom for busbar: 50mm2
Tightening torque 2.5 N*m
Connection: From top and bottom....
In (A) | QTY/CTN |
32A | 45pcs |
40A | 45pcs |
50A | 45pcs |
63A | 45pcs |
80A | 45pcs |
100A | 45pcs |
125A | 45pcs |
