Molded Case Circuit Breaker Definition Functions Applications

Introduction

A Molded Case Circuit Breaker (MCCB) is an essential electrical protection device used in residential, commercial, and industrial power systems. It is designed to protect electrical circuits from damage caused by overload currents, short circuits, and other abnormal conditions. MCCBs are versatile, available in a wide range of current ratings, and can be applied to both low-power and high-power systems.

Unlike a miniature circuit breaker (MCB), which is commonly used for smaller loads, an MCCB can handle higher currents—up to 2,500 amperes—and often has adjustable trip settings to match the specific protection requirements of different applications. MCCBs also provide reliable manual switching and isolation for maintenance and safety purposes.

This article will explain what an MCCB is, how it works, its core functions, comparisons with other circuit breakers, and its applications. The central focus will be on the functions of an MCCB, explained in a clear and accessible way for both beginners and professionals.

What is a Molded Case Circuit Breaker?

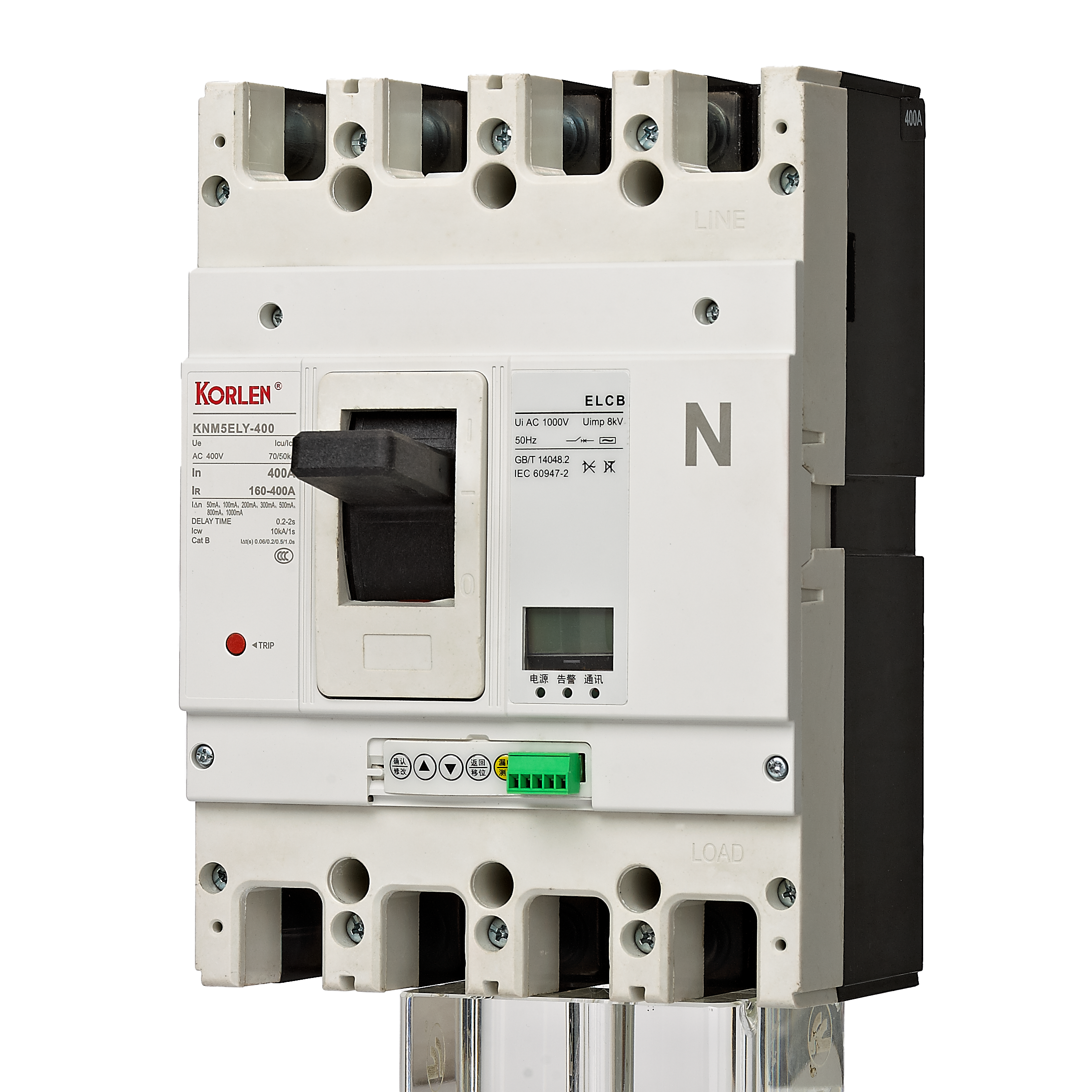

A molded case circuit breaker is a protective device enclosed in a strong, insulated housing (the “molded case”) made from materials such as glass polyester or thermoset resin. This housing contains all the key parts, including:

• Contacts – conduct and interrupt current

• Trip unit – detects abnormal currents and triggers the breaker

• Arc extinguishing chamber – safely interrupts the electrical arc

• Operating mechanism – opens and closes the breaker

MCCBs can operate at both 50 Hz and 60 Hz frequencies and are available in various voltage classes. Their adjustable trip mechanisms make them suitable for a wide range of installations, from small equipment protection to large industrial feeders.

The Function of Molded Case Circuit Breaker

The main role of an MCCB is to protect electrical systems and connected equipment from damage caused by abnormal conditions. This is achieved through several integrated functions.

3.1 Core Protection Functions

3.1.1 Overload Protection

Overload occurs when the current exceeds the rated value for a sustained period. If not stopped, the excessive heat can damage insulation, reduce equipment lifespan, and potentially cause fires.

An MCCB detects overloads using a thermal trip mechanism:

• A bimetallic strip heats up when excess current flows.

• The heat causes the strip to bend.

• Once it bends enough, it releases the trip mechanism, opening the breaker.

Example: In a motor circuit, if the motor draws higher current due to mechanical jamming, the MCCB will trip after a set time, preventing overheating.

3.1.2 Short Circuit Protection

A short circuit happens when there is a direct connection between conductors of different potential, allowing extremely high currents to flow almost instantly. These currents can damage equipment and cause severe hazards.

MCCBs use an electromagnetic trip mechanism for short circuit protection:

• A solenoid coil senses the sudden current spike.

• The strong magnetic field pulls an armature that triggers the trip mechanism.

• The contacts open almost instantly (within milliseconds).

Example: If a cable is damaged and two conductors touch, the MCCB will trip immediately to prevent further damage.

3.2 Advanced Protection & Customization

3.2.1 Adjustable Protection Settings

One advantage of an MCCB is the ability to adjust trip thresholds for overload and short circuit conditions. This customization allows the breaker to:

• Protect sensitive equipment with low fault tolerance.

• Handle inrush currents from motors without nuisance tripping.

For example, a welding machine has a high startup current. By adjusting the trip setting, the MCCB can allow the initial surge but still protect against sustained overloads.

3.2.2 Undervoltage Release

An undervoltage release trips the breaker when the supply voltage drops below a safe level. This prevents equipment from running in unstable voltage conditions, which can cause overheating or erratic operation.

Example: In an industrial plant, an undervoltage release can prevent machinery from running during a power dip, avoiding motor damage.

3.3 Operation & Isolation

3.3.1 Manual Control

MCCBs can be manually switched on or off. This is useful for:

• Routine maintenance

• Emergency shutdowns

• Isolating parts of a circuit for inspection

3.3.2 Isolation Function

An MCCB can completely isolate a circuit when open. This ensures maintenance personnel can work safely, knowing the circuit is disconnected from the power supply.

MCCB vs. Other Circuit Breakers

4.1 MCCB vs. MCB

• MCB (Miniature Circuit Breaker) is smaller, designed for up to ~100A, and has fixed trip settings.

• MCCB handles much higher currents (up to 2,500A) and often has adjustable trip settings.

• MCBs are mainly used in homes and small commercial setups; MCCBs are used in industrial and high-power applications.

4.2 MCCB vs. ACB

• ACB (Air Circuit Breaker) is used for very high currents in large-scale power distribution systems, often exceeding MCCB capacities.

• MCCBs are more compact and cost-effective for medium to large loads.

• ACBs are usually draw-out type; MCCBs are often fixed-mounted or plug-in.

MCCB Applications & Selection Guide

MCCBs are used in many sectors:

• Industrial plants – to protect motors, conveyor systems, compressors

• Commercial buildings – for main distribution boards, HVAC systems, elevators

• Generators – to handle high output currents

• Renewable energy systems – to manage fluctuating currents from solar or wind sources

• Capacitor banks – to protect against overcurrents during power factor correction

How to Select the Right MCCB:

1. Rated Current (In) – match to your load requirements.

2. Breaking Capacity (Icu/Ics) – must exceed the maximum fault current in the system.

3. Voltage Rating (Ue/Ui) – ensure compatibility with your system voltage.

4. Trip Curve and Settings – choose based on load type (resistive, inductive, etc.).

5. Environmental Conditions – consider temperature, humidity, and enclosure type.

If you are looking for reputable MCCB suppliers, check out our Top 12 Molded Case Circuit Breaker Manufacturers.

Conclusion

A Molded Case Circuit Breaker is more than just a switch—it’s a critical protection device that safeguards electrical systems from overloads, short circuits, and undervoltage conditions. Its adjustable settings and versatility make it suitable for a wide range of applications, from small equipment to large industrial feeders.

By understanding its functions—especially the core protection mechanisms—you can choose and configure an MCCB to provide reliable, efficient, and safe operation for your specific needs.
