When it comes to selecting the right Molded Case Circuit Breaker (MCCB) for your electrical system, two key parameters often come up: frame size and breaking capacity. Understanding which of these should be prioritized is crucial for making an informed decision. In this blog, we’ll walk you through both concepts and help you understand which one to choose first.
What is MCCB Frame Size?
MCCB frame size refers to the physical size of the breaker. This size determines the maximum current that the breaker can handle without tripping. Frame sizes are typically categorized by the breaker’s rated current, with common ratings including 100A, 250A, 400A, etc.
Choosing the right frame size ensures that the MCCB will fit your panel or distribution board, and it provides adequate protection for the wiring and electrical components in the circuit.
What is Breaking Capacity?
Breaking capacity, also known as interrupting rating, refers to the maximum fault current that an MCCB can safely interrupt without damage. This is a critical safety feature, as high fault currents, such as those from short circuits or electrical surges, could cause severe damage to both the breaker and the electrical system.
Choosing the correct breaking capacity ensures that the MCCB can handle unexpected faults without risking the integrity of the system. This is especially important in high-voltage environments and areas with a higher risk of faults.
Which Comes First — Frame Size or Breaking Capacity?
Prioritize Breaking Capacity
While both parameters are important, breaking capacity should come first when selecting an MCCB. If the breaker cannot withstand the fault current in your electrical system, it could fail during an emergency situation, leading to damage or a complete system failure.
Once you’ve determined the required breaking capacity, you can select the appropriate frame size that supports it, ensuring the breaker can still handle your system’s normal operating current.
Choose the Correct Frame Size Based on Rated Current
After deciding on the breaking capacity, the next step is to choose the correct frame size. The frame size is determined by the rated current of your electrical system, and you need to ensure that it matches the typical load of the circuit. Selecting the correct frame size ensures that the breaker is not too large (which could result in unnecessary tripping) or too small (which might lead to inadequate protection).
Why Choose Korlen’s MCCBs?

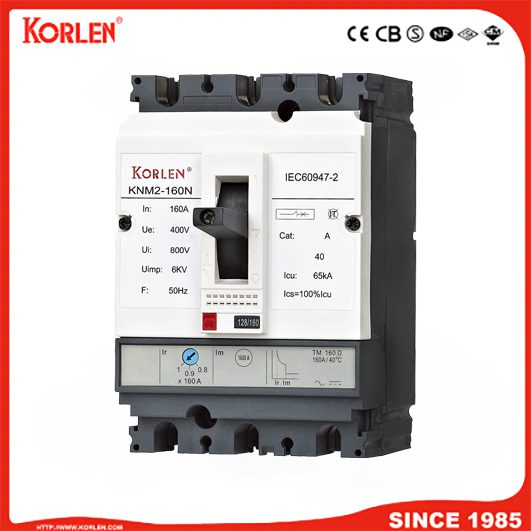

At Korlen, we provide a wide range of high-quality MCCBs that meet international standards. Our MCCBs are designed to offer superior protection for your electrical systems, with options for different breaking capacities and frame sizes. Whether you are designing a new electrical system or upgrading an existing one, Korlen MCCBs provide reliable performance and long-lasting protection.
FAQs
Q: How do I know which breaking capacity my system needs?
The required breaking capacity depends on the maximum fault current in your electrical system. You can calculate this based on the short circuit fault level at your distribution board or consult an electrician to ensure the correct rating.
Q: What happens if the breaking capacity is too low for my system?
If the breaking capacity is too low, the MCCB will fail to interrupt high fault currents, potentially damaging your electrical system and putting your safety at risk.
Q: Can I adjust the frame size of an MCCB once it’s installed?
No, the frame size is a fixed parameter and should be selected according to the rated current during the initial installation. It’s important to choose the right frame size upfront to avoid issues later.
Q: Does Korlen offer customized MCCB solutions?
Yes, at Korlen, we provide customized MCCB solutions to suit the specific needs of your electrical systems, including various frame sizes and breaking capacities.
Conclusion
When selecting the right MCCB, it’s important to prioritize breaking capacity first, followed by choosing the appropriate frame size based on your system’s rated current. By making these informed decisions, you’ll ensure the safety and reliability of your electrical system.
Choose Korlen for your MCCB needs, and trust that our products will provide the quality and performance your system deserves.
