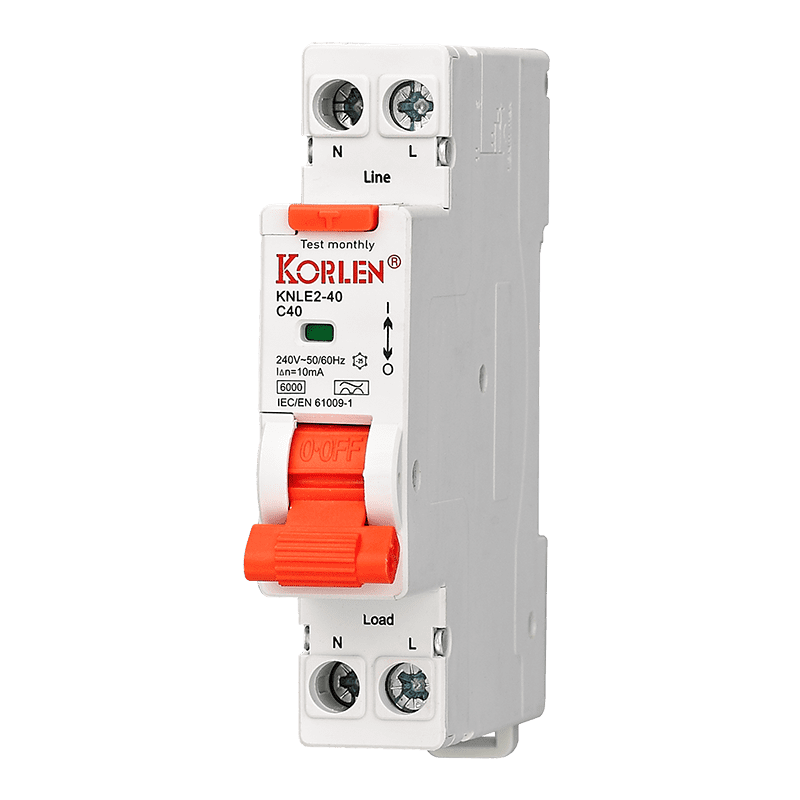

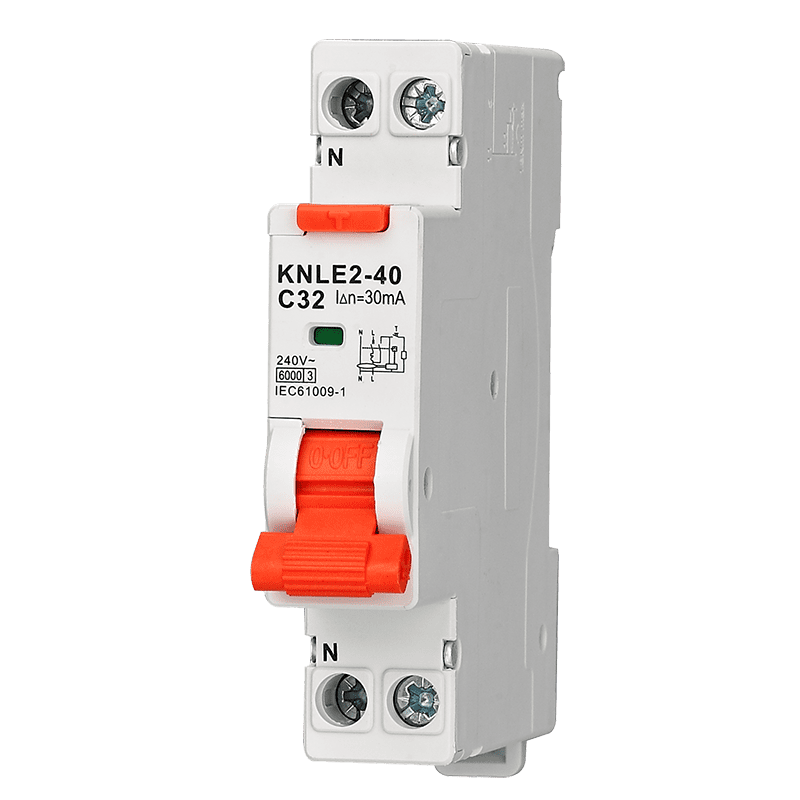

A Type AC Type 18mm RCBO KNLE2-40

KNLE2-40 series eakage breaker is sulable for the leakage proteclon ot he line ofAC 508OHz,rated woltage single phase 240V,ratedcurent up to 40A.

When there is human elctriciy shockorifthe leakage cument ofthe fne exeeds the prescribed value,it willautomaticaly cutof the power wihin 0.1sto prolnct human safaty and prevert he accident due to the curent lakage.

KNLE2-40 serles aakage breaker can protect against overbad and shot-crauit.t can be used s wel as hfrequant changeover ot the Ine innomalsituation.It compleswi standard ofIEC/EN61009-1 and GB16917.1.

Basic specification and main parameters

Frame class	40A
Rated working voltage	240V
Rated frequency	50/60Hz
Rated working current	6,10,16,20,25,32,40A
Rated residual operating current	30mA,10mA
Sensibility	A Type,AC Type
Maximum operating time	△n t≤0.3s,5\|△n t≤0.04S
Making and breaking capacity	6000A
Release type	C
Poles	1P+N
Mechanical life	8000
Electric life	4000
