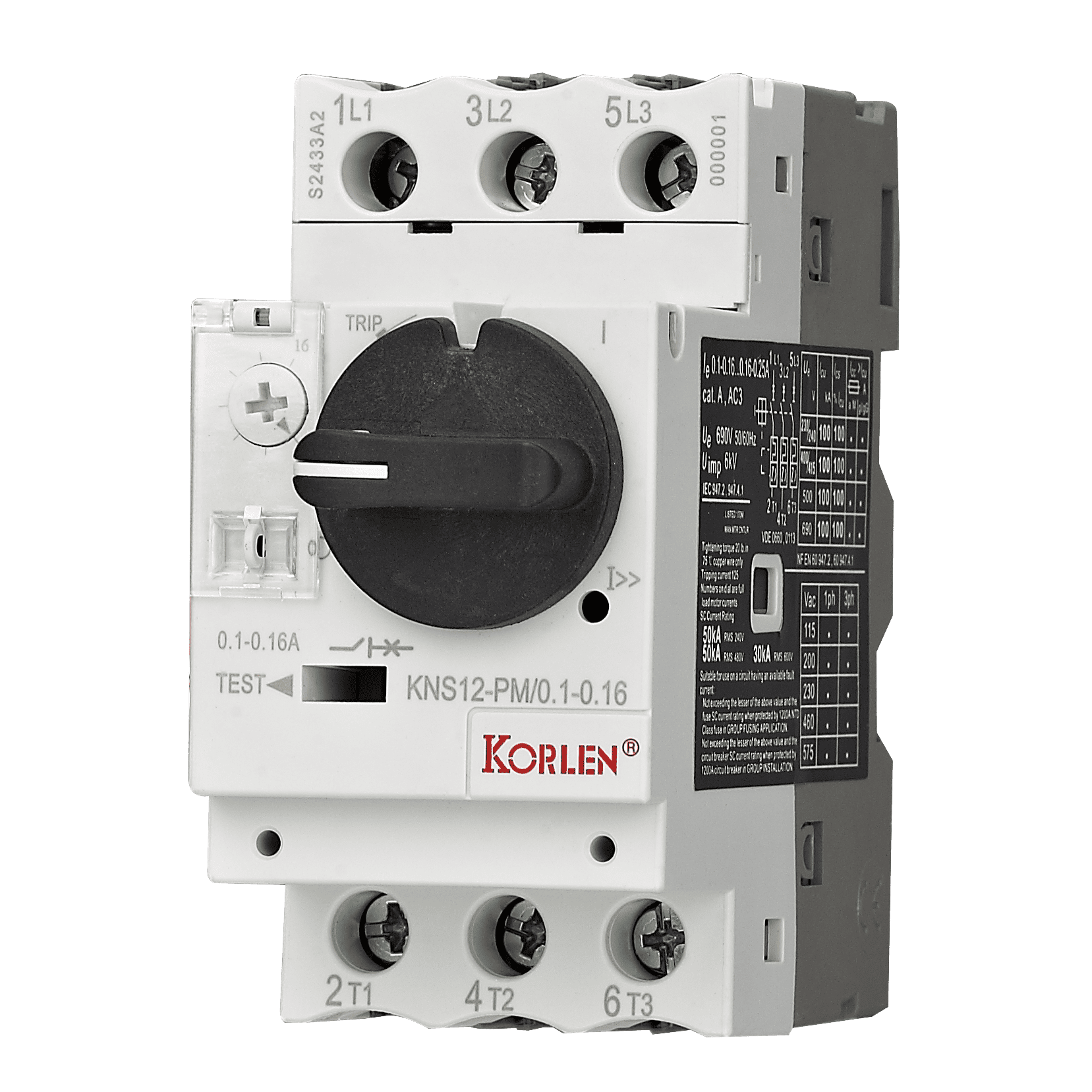

Manual Motor Starter With Low Price KNS12

Manual Motor Starter With Low Price KNS12

General Specification

KNS12 Series meet below international standard

IEC 60947.1

IEC 60947.2

IEC 90647.4.1

KNS12 has certificate of CE and so on.

Application
KNS12 is applied to AC 690V,0.1A~80A.Serve as three-phase squirrel-cage asynchronous motor over-loader,phase-losing and short circuit protector,infrequent start-controller,KNS12 can protect distribution line and load transfer infrequently. Also can be used as isolation.

Ambient temperature
KNS12 can used between -5℃ to +40℃,if in a higher or lower temperature, the customer should consult to the manufacture.

Technical parameter

KNS12-M32 Manual motor starter with thermo-magnetic protecton
Button control or switch control
50/60HZ,AC-3 type,three-phase motor rated power				Thermal tripping setting range	Magnetic tripping current	Ithe current with case	Type (button control)	Weight
230V	400V	415V	440V	Thermal tripping setting range	Magnetic tripping current	Ithe current with case	Type (button control)	Weight
kW	kW	kW	kW	A	A	A		kg
–	–	–	–	0.1…0.16	1.5	0.16	KNS12-M3201	0.260
–				0.16…0.25	2.4	0.25	KNS12-M3202	0.260
–	–	–	–	0.25…0.40	5	0.40	KNS12-M3203	0.260
–	–			0.40…0.63	8	0.63	KNS12-M3204	0.260
–	–	–	0.37	0.63…1	13	1	KNS12-M3205	0.260
–	0.37	–	0.55	1…1.6	22.5	1.6	KNS12-M3206	0.260
0.37	0.75	0.75	1.1	1.6…2.5	33.5	2.5	KNS12-M3207	0.260
0.75	1.5	1.5	1.5	2.5…4	51	4	KNS12-M3208	0.260
1.1	2.2	2.2	3	4…6.3	78	6.3	KNS12-M3210	0.260
2.2	4	4	4	6…10	138	9	KNS12-M3214	0.260
3	5.5	5.5	7.5	9…14	170	13	KNS12-M3216	0.260
4	7.5	9	9	13…18	223	17	KNS12-M3220	0.260
5.5	11	11	11	17…23	327	21	KNS12-M3221	0.260
5.5	11	11	11	20…25	327	23	KNS12-M3222	0.260
7.5	15	15	15	24…32	416	24	KNS12-M3232	0.260

KNS12-M80 Manual motor starter with thermo-magnetic protection
Button control
50/60HZ,AC-3 type, three-phase motor rated power				Thermal tripping setting range	Magnetic tripping current d±20%	Type (button control)	Weight
230V	400V	415V	440V	Thermal tripping setting range	Magnetic tripping current d±20%	Type (button control)	Weight
kW	kW	kW	kW	A	A		kg
–	0.37	–	0.55	1 to 1.6	19.2	KNS12-M8006	0.600
0.37	0.75	1.1	1.1	1.6 to 2.5	30	KNS12-M8007	0.600
0.75	1.5	1.5	1.5	2.5 to 4	48	KNS12-M8008	0.600
1.1	2.2	2.2	3	4 to 6	72	KNS12-M8010	0.600
2.2	4	4	4	6 to 10	120	KNS12-M8014	0.600
4	7.5	7.5	7.5	10 to 16	192	KNS12-M8020	0.600
5.5	11	11	11	16 to 25	300	KNS12-M8025	0.600
1	18.5	22	22	25 to 40	480	KNS12-M8040	0.700
15	30	33	33	40 to 63	756	KNS12-M8063	0.700
22	40	45	45	56 to 80	960	KNS12-M8080	0.700
