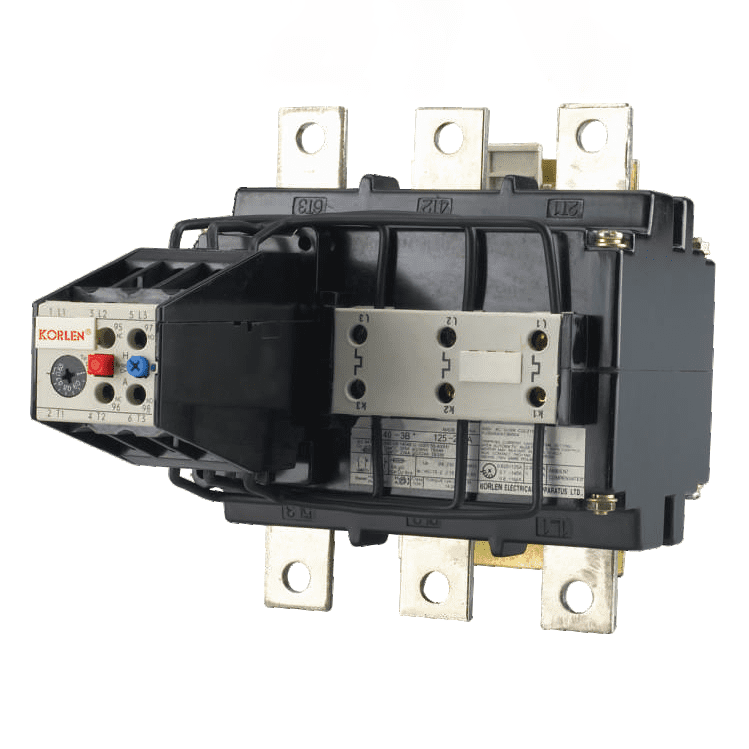

Thermal Relay Overload Relay KNR8

Application
KNR8 series overload relay is suitable for 50Hz/60Hz, rated voltage up 690~1000V,rated current 0.1~400A in main circuit of long time working. It is used to protect AC three-phase asynchronous motor against overload and open phase.
This products conformity with IEC947-4, VDE0660,GB14048.4 standards .

Working condifion
●The altituelde should be not higher than 2000m;
●The ambient temperature:-25℃~55℃;
●The relative humidity: when +25℃,the relative humidity of air should be not more than 90%.

Feature
●Senies overload relay of thermal metal mode, tripping class is 10A;
●Setting current continuous adjustable device;
●Trip indicator;
●Test button;
●Reset button by hand operation and automatic reset button;
●Have a pair of No and Nc insulation contact in electricity;
●Mode of installation: install independently or can plug in the AC contator.

Parameters & Technical Date

Type	Sphere of setting current(A)	Fuse specification (A)
		IEC947-4
		“1”	“2”
KNR8-50	0.1-0.16	35	0.5
	0.16-0.25		1
	1.25-0.4		1.6
	0.4-0.63		2
	0.63-1		4
	0.8-1.25		4
	1-1.6		6
	1.25-2		6
	1.6-2.5		6
	2-3.2		10
	2.5-4		10
	3.2-5		20
	4-6.3		16
	5-8		16
	6.3-10		25
	8-12.5		25
	10-14.5		25
KNR8-52	0.1-0.16	63	0.5
	0.16-0.25		1
	0.25-0.4		1.6
	0.4-0.63		2
	0.63-1		4
	0.8-1.25		4
	1-1.6		6
	1.25-2		6
	1.6-2.5		6
	2-3.2		10
	2.5-4		10
	3.2-5		16
	4-6.3		16
	5-8		20
	6.3-10		25
	8-12.5		25
	10-16		35
	12.5-20		35
	16-25		50
KNR8-55	1-1.6	100	6
	1.25-2		6
	1.6-2.5		6
	2-3.2		10
	2.5-4		10
	3.2-5		16
	4-6.3		16
	5-8		20
	6.3-10		25
	8-12.5		25
	10-16		35
	12.5-20		50
	16-25		50
	20-32		80
	25-36		80
	32-40		80
	36-45		80
Type	Sphere of setting current(A)	Fuse specification (A)
		IEC947-4
		“1”	“2”
KNR8-58	12.5-20	160	50
	16-25		50
	20-32		63
	25-40		80
	32-50		100
	40-57		100
	50-63		100
	57-70		125
	63-80	250	160
	70-88	250	160
KNR8-60	55-80	250	160
	63-90	250	160
	80-110	315	200
	90-120		224
	110-135		224
KNR8-61	55-80	250	160
	63-90	250	160
	80-110	315	200
	90-120		224
	110-135		224
	120-150		224
KNR8-59	0.1-0.16	25	0.5
	0.16-0.25		1
	0.25-0.4		1.6
	0.4-0.63		2
	0.63-1		4
	0.8-1.25		4
	1-1.6		6
	1.25-2		6
	1.6-2.5		6
	2-3.2		10
	2.5-4		10
	3.2-5		16
	4-6.3		16
	5-8		16
	6.3-10		16
	8-12.5	35	25
	10-16	63	35
	12.5-20	63	50
	16-25	63	50
	20-32	80	63
	25-40	125	80
	32-40	160	100
	40-57	160	125
	50-63	160	125
KNR8-62	55-80	250 250	160
	63-90	250 250	160
	80-110	250	200
	90-120 110-135 120-150	315	224
	135-160 150-180	355	224
KNR8-66	80-125	500	250
	125-200		315
	160-250		400
	200-320		400
	250-400	800	500
