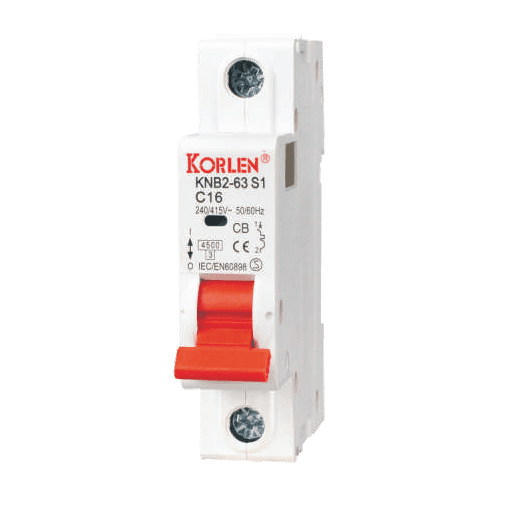

Factory Price Miniature Circuit Breaker KNB2-63S1

Factory Price Miniature Circuit Breaker KNB2-63S1

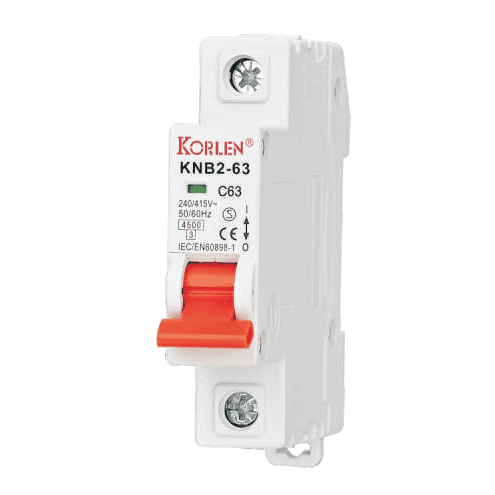

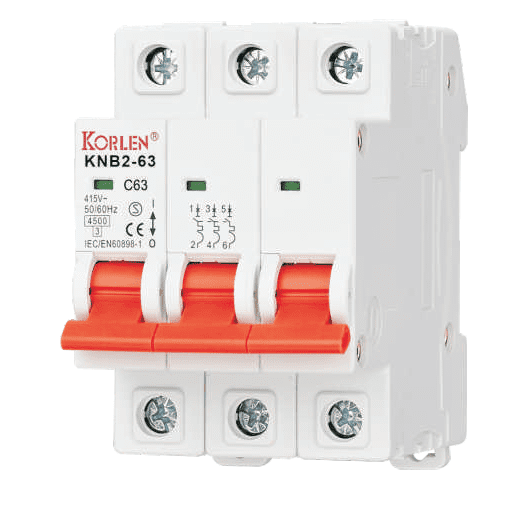

KNB2-63 High-breaking Miniature Circuit Breaker is nice in appearance, reasonable in structure, sound in feature and high in breaking capacity. Installed with standard din rail, it is convenient and easy in usage. It is mainly used in the line of AC 50/60Hz, rated working voltage to 415V, and rated current to 63A as protection against overload and short-circuit. It can be used as infrequent on-and-off operation and changeover.
It complies with standard of GB10963 and IEC/EN60898.

Parameters & Technical Date

Frame class	63A
Rated working voltage	240V/415V
Rated frequency	50/60Hz
Rated working current	6、10、16、20、25、32、40、50、63A
Making and breaking capacity	6000A
Release type	B、C、D
Poles	1、2、3、4P
Mechanical life	10000
Electric life	2000

Sequence NO .	Release	Test current I/In	Start state	Tripping time	Expected result
1	C、D	1.13In	Cold state	t≤2h	Not tripping
2	C、D	1.45In	Start right after the serial NO . 1 test	t＜2h	Tripping
3	C、D	2.55In	Cold state	1s＜t＜120s	Tripping
4	C D	5In 10In	Cold state	t≤0.1s	Not Tripping
5	C D	10In 20In	Cold state	t＜0.1s	Tripping
