KNM5 Series 10–800A AC690V Moulded Case Circuit Breaker

KNM5 Series 10–800A AC690V Moulded Case Circuit Breaker

KNM5 series moulded case circuit breaker the rated insulation voltage of the circuit breaker is up to 1000V. It is suitable for AC 50Hz, rated working voltage to 690V, rated working current 10A to 800A in the distribution network circuit, used to distribute power and protect the line and power equipment from overload, short circuit, or damage to voltage and other faults. At the same time, it can also be used as the initial infrequent start of the motor and overload, short circuit and under voltage protection. The circuit breaker has the characteristics of small size, high breaking, short arcing, etc., and is an ideal product for users. The circuit breaker is installed vertically. This product complies with EC60947-2, GB14048.2 and other standards.

Technical parameter

Technical parameter

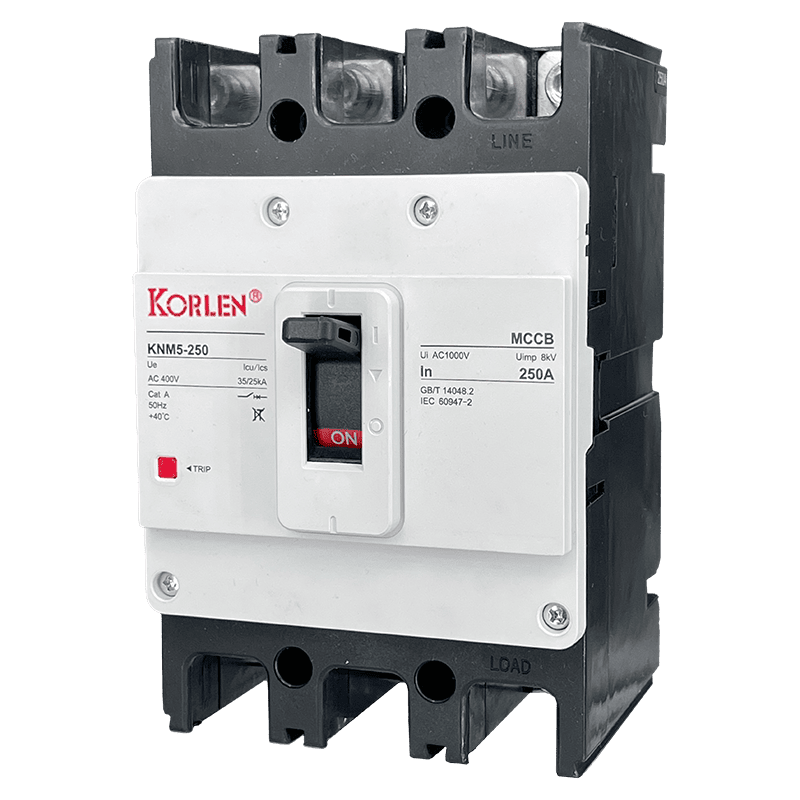

KNM5

Frame class	125	160	250	630	800	1000	1250
Item model	KNM5-125	KNM5-160	KNM5-250	KNM5-630	KNM5-800	KNM5-1000	KNM5-1250
Rated current In(A)	10, 16, 20, 32, 40, 50, 63, 80, 100, 125	125, 140, 160	160, 180, 200, 225, 250	250, 315, 400, 500, 630	500, 630, 700, 800	1000	1250
Rated voltage	AC400V	AC400V	AC400V	AC400V	AC400V	AC400V	AC400V
Rated insulation voltage	AC1000V	AC1000V	AC1000V	AC1000V	AC1000V	AC1000V	AC1000V
Ultimate short-circuit breaking capacity (KA) Icu/Ics AC400V	35/25	35/25	35/25	65/50	65/50	65/50	65/50
Electrical life/Mechanical life	3000/10000	3000/10000	3000/10000	3000/10000	3000/10000	1500/8000	1500/8000
Outline dimensions (mm)	2P	50-130-68	60-155-88	105-165-88	140-257-103	210-275-103	210-275-103
	3P	75-130-68	90-155-88	105-165-88	140-257-103	210-275-103	210-275-103
	4P	100-130-68	120-155-88	140-165-88	184-257-103	280-275-103	280-275.5-103

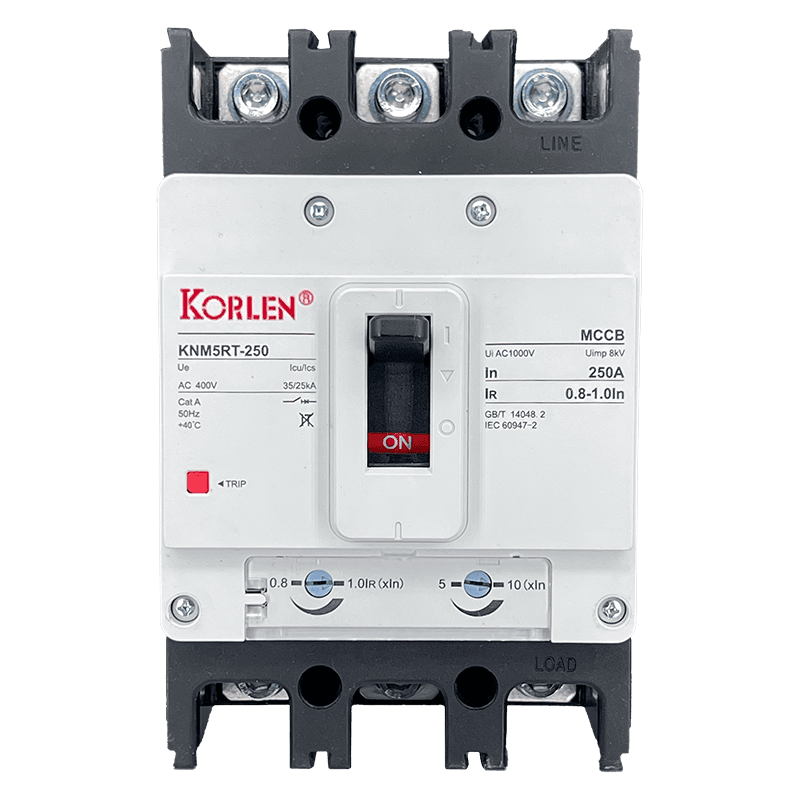

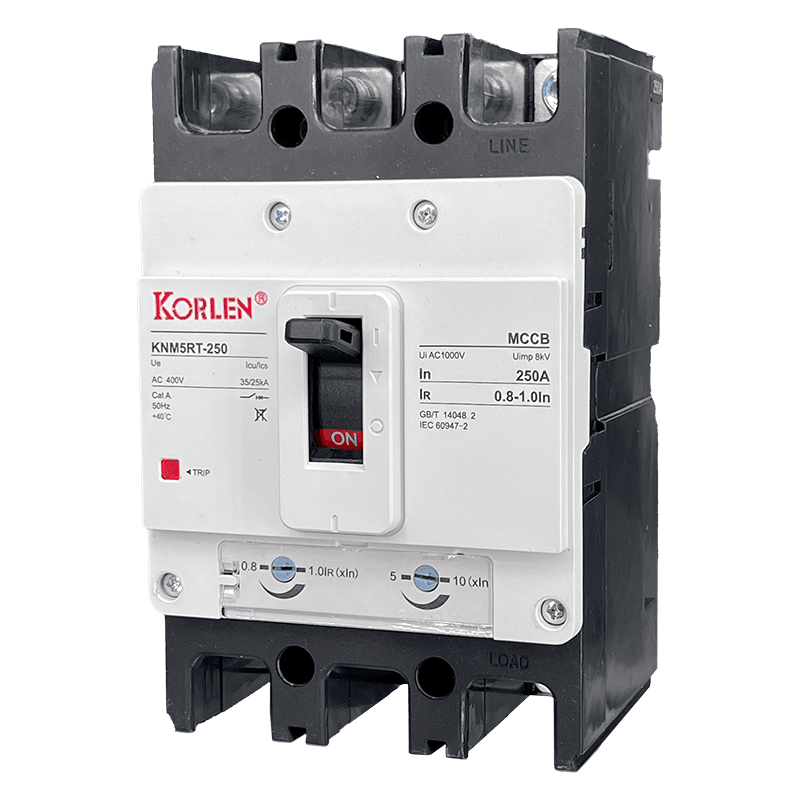

KNM5RT

Item model	KNM5RT-125	KNM5RT-160	KNM5RT-250	KNM5RT-400	KNM5RT-630	KNM5RT-800
Rated current In(A)	10, 16, 20, 32, 40, 50, 63, 80, 100, 125	125, 140, 160	160, 180, 200, 225, 250	250, 315, 350, 400	500, 630	500, 630, 700, 800
Rated voltage	AC400V	AC400V	AC400V	AC400V	AC400V	AC400V
Rated insulation voltage	AC1000V	AC1000V	AC1000V	AC1000V	AC1000V	AC1000V
Ultimate short-circuit breaking capacity (KA) Icu/Ics AC400V	35/25	35/25	35/25	65/50	65/50	65/50
Electrical life	3000	3000	2000	2000	2000	1500
Mechanical life	10000	10000	10000	10000	10000	10000
Adjustable range of thermal overload	0.85-1.0In
Adjustable range of magnetic trip	5-10In
Outline dimensions (mm)	3P	70-130-68	90-155-88	105-165-88	140-257-103	210-275-103
Outline dimensions (mm)	4P	100-130-68	120-155-88	140-165-88	184-257-103	280-275-103

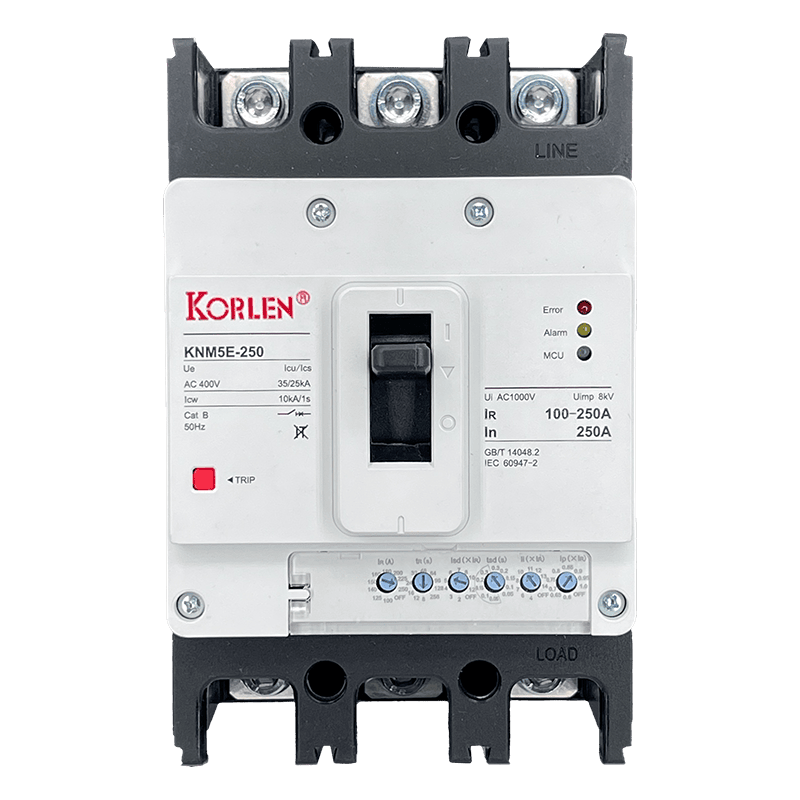

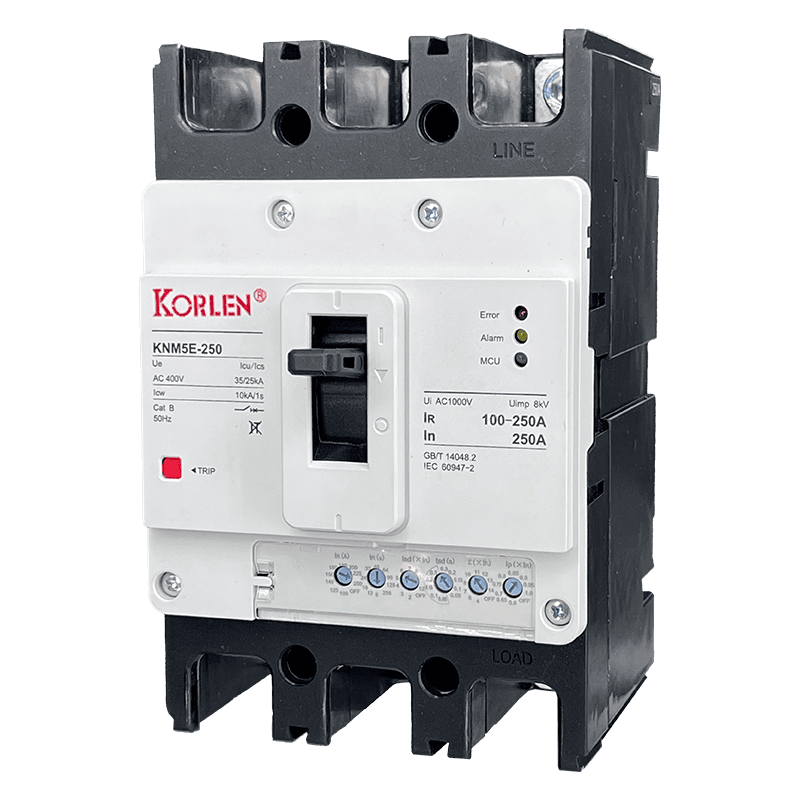

KNM5E

Frame class		160	250	630	800
Item model		KNM5E-160	KNM5E-250	KNM5E-630	KNM5E-800
Rated current In(A)		10, 16, 20, 32, 40, 50, 63, 80, 100, 125, 140, 160	100, 125, 140, 160, 180, 200, 225, 250	250, 315, 350, 400, 500, 630	500, 630, 700, 800
Rated voltage		AC400V	AC400V	AC400V	AC400V
Rated insulation voltage		AC1000V	AC1000V	AC1000V	AC1000V
Ultimate short-circuit breaking capacity (KA) Icu/Ics AC400V		35/25	35/25	65/50	65/50
Electrical life		3000	3000	3000	1500
Mechanical life		10000	10000	10000	10000
Outline dimensions (mm)	3P	90-155-88	105-165-88	140-257-103	210-257-103
Outline dimensions (mm)	4P	120-155-88	140-165-88	185-257-103	280-257-103

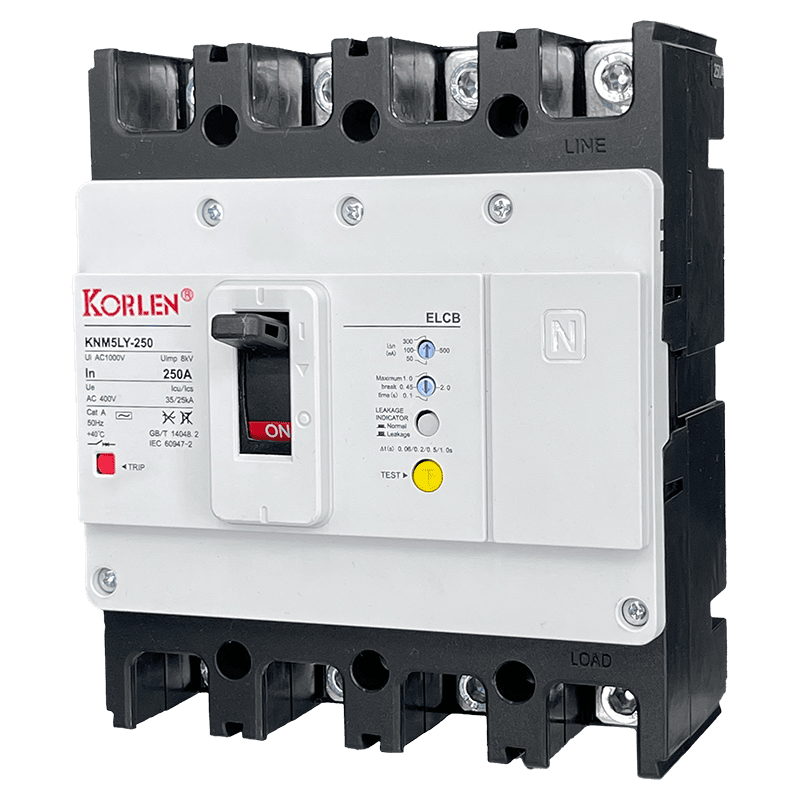

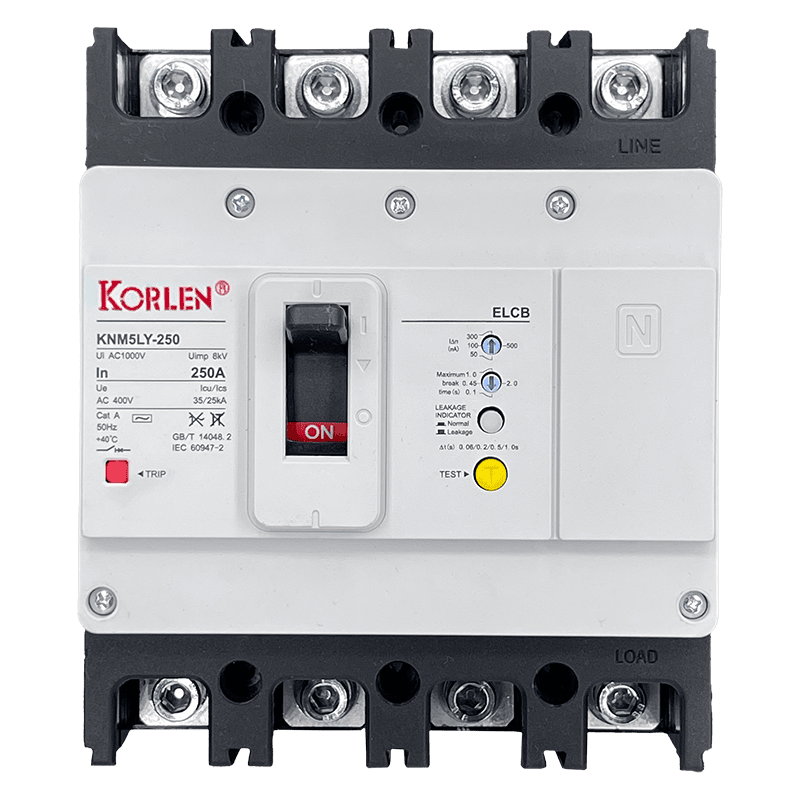

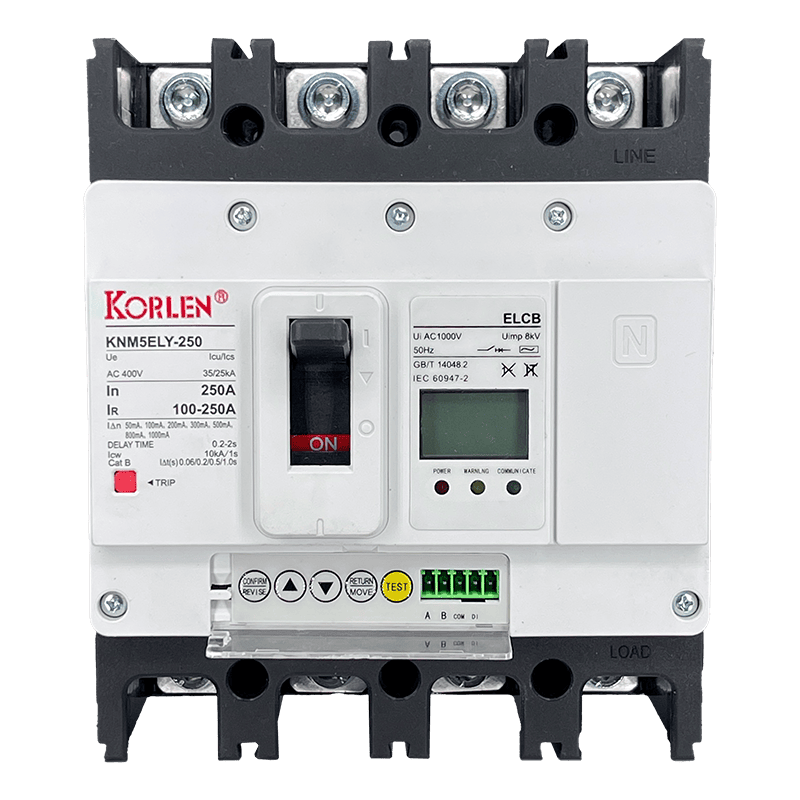

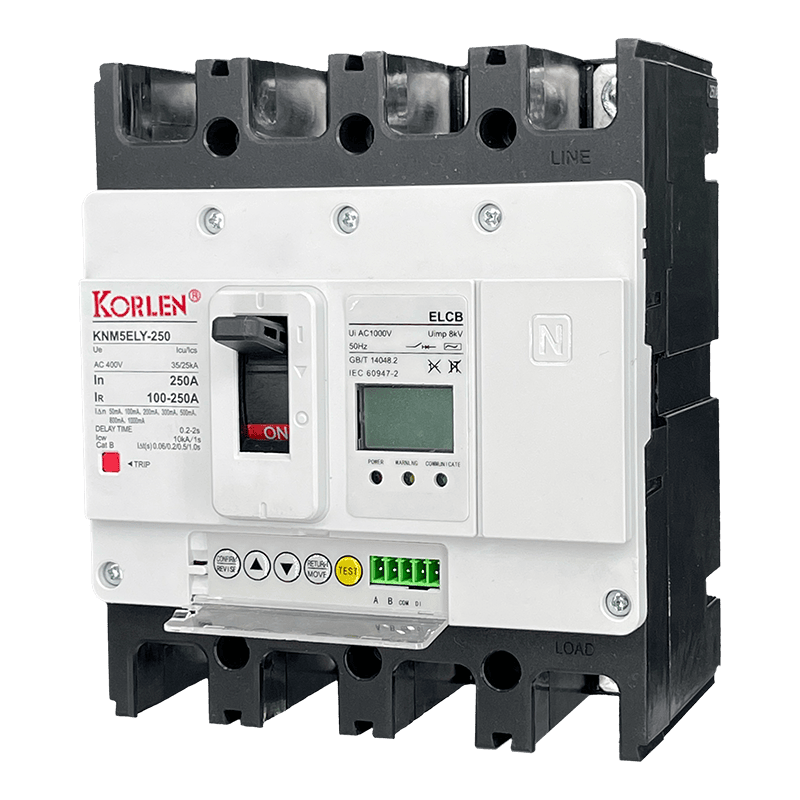

KNML5Y

Frame class		125	160	250	630	800
Item model		KNML5Y-125	KNML5Y-160	KNML5Y-250	KNML5Y-630	KNML5Y-800
Rated current In(A)		10, 16, 20, 32, 40, 50, 63, 80, 100, 125	10, 16, 20, 32, 40, 50, 63, 80, 100, 125, 140, 160	100, 125, 140, 160, 180, 200, 225, 250	250, 315, 350, 400, 500, 630	500, 630, 700, 800
Rated voltage		AC400V	AC400V	AC400V	AC400V	AC400V
Rated insulation voltage		AC690V	AC690V	AC690V	AC690V	AC690V
Ultimate short-circuit breaking capacity (KA) Icu/Ics AC400V		35/25	35/25	35/25	65/50	65/50
Electrical life		3000	3000	3000	3000	1500
Mechanical life		10000	10000	10000	10000	10000
Rated residual operation current (IΔn)	Undelay	30, 100, 500 (Adjustable)
Rated residual operation current (IΔn)	Delay	100, 300, 500 (Adjustable)
Maxim breaking time (s)	Undelay	0.1
Maxim breaking time (s)	Delay(2IΔn)	0.45, 1.0, 2.0 (Adjustable)
Outline dimensions (mm)	3P	75-130-68	90-155-88	105-165-88	105-165-88	210-275-103
Outline dimensions (mm)	4P	100-130-68	120-155-88	140-165-88	140-165-88	280-275-103
