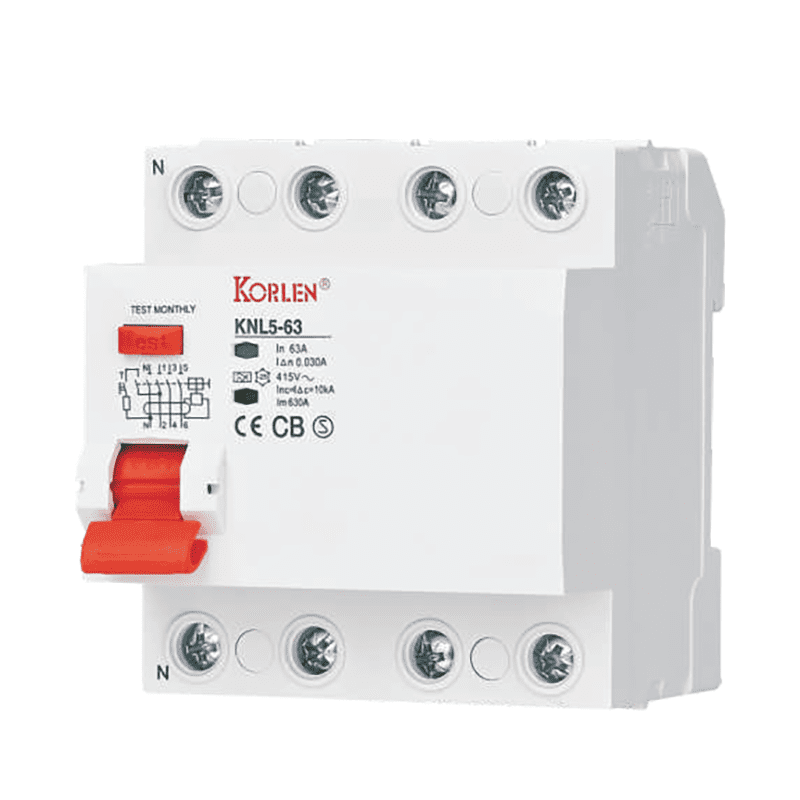

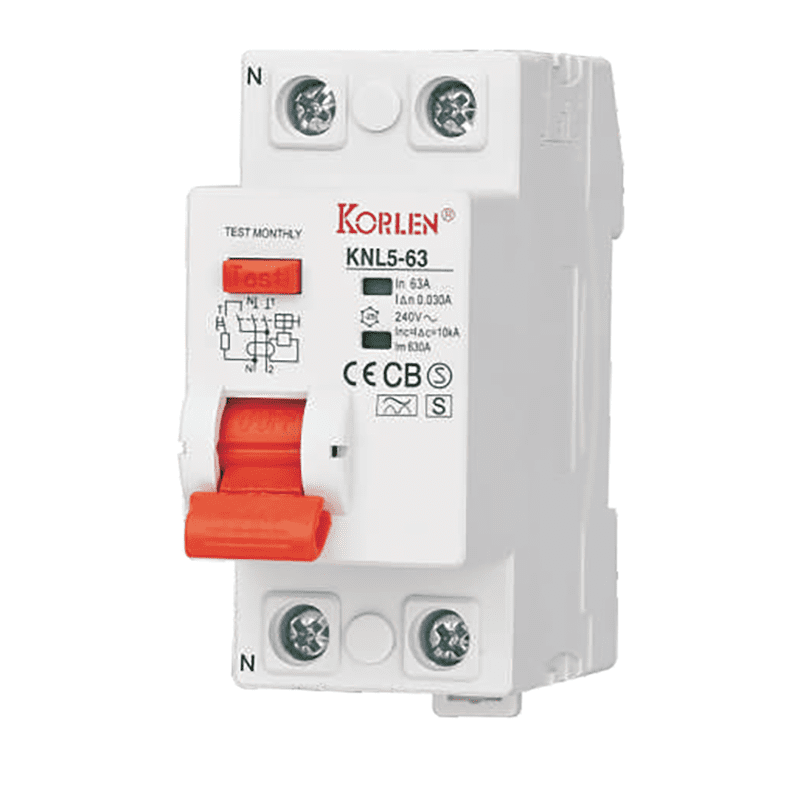

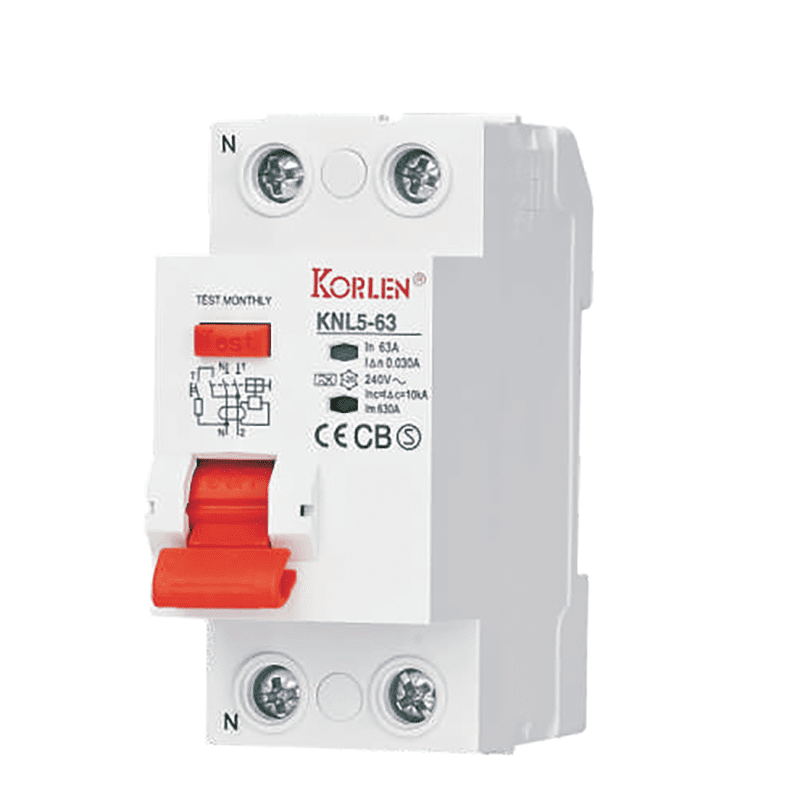

KNL5-63/63H Residual Current Circuit Breaker With Window

KNL5-63/63H Residual Current Circuit Breaker With Window

KNL5 series Residual current circuit breaker(without over-current protection)is suitable for the line of AC 50/60Hz,votage 240V(2pole)1415V(4pole),rated curent up to 63A.

When there is human electricity shock orif the leakage current of the line exceeds the prescribed value,t wil cut of the power rapidly to protect human safety and prevent the accident due to the current leakage.

It can be used as infrequent changeoverof the line in normal situation.It is applicable to industrial site,commercial site,tall building and civil house.

It complies with standard of IEC/EN61008-1 and GB16916.1.

Basic specification and main parameters

Frame class	63A
Rated working voltage	240/415V
Rated frequency	50/60Hz
Rated working current	16,20,25,32,40,50,63A
Rated residual operating current	0.03,0.1,0.3,0.5A
Rated residual un-operating current	0.015,0.05,0.15,0.25A
Sensibility	Type AC,Type A,Type F,Type S,Type B
Maximum operating time	\|△n t≤0.3s,5l△n t≤0.04s
Rated making and breaking capacity	In≤50A 500A,In=63A 630A
Rated limiting short-circuit current	6000A/10000A
Pole number	2,4P
Mechanical life	10000
Electric life	4000
