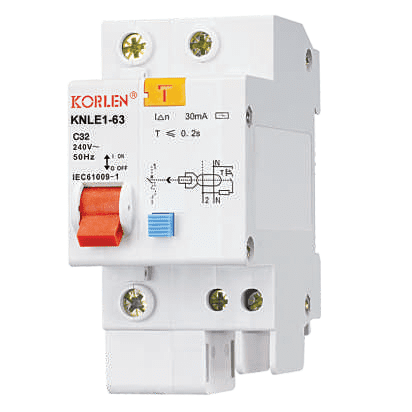

Low Voltage KNLE1-63P/100P Leakage Circuit Breaker

Low Voltage KNLE1-63P/100P Leakage Circuit Breaker

KNLE1-63P/100P series leakage breaker is suitable for the leakage protection of the line ofAC 50/60Hz,rated voltage single phase 240V,threephase240/415Vand below,rated curent up to 100A.

When thereishuman electiciyshock oriftheleakage current of the line exceeds the prescrbedvalue,it will utomatically cut offthe power within 0.1s to protect human safety and prevent the acident due to the current leakage.

KNLE1 series leakage breaker can protect against overload and short-circui.It can be used to protecthe line from being overloaded andshort-circuited as well as infrequent changeover of the line in normal situation.

It complies with standard of IEC/EN6100-1 and GB16917.1.

Basic specification and main parameters
The over-current tripping unit protection feature

Frame class	63A,100A
Rated working voltage	240/415V
Rated frequency	50/60Hz
Rated working current	6,10,16,20,25,32,40,50,63,80,100A
Rated residual operating current	0.03,0.1,0.3,0.5A
Rated residual un-operating current	0.015,0.05,0.15,0.25A
Sensibility	A Type,AC Type
Maximum operating time	△n t≤0.3s,5\|△n t≤0.04s
Instant release type	B,C,D
Rated limiting short-circuit current	4500A/6000A
Pole number	1P+N,2P,3P,3P+N,4P
Mechanical life	8000
Electric life	4000

Sequence NO.	Release	Test current I/ln	Start state	Tripping time	Expected result
1	C	1.13In	Cold state	t≤1h	Not tripping
2	C	1.45In	Start right after the serial NO. 1 test	t<1h	Tripping
3	C	2.55ln	Cold state	1s<t<60s	Tripping
4	C	5In	Cold state	t≤0.1s	Not tripping
5	C	10In	Cold state	t<0.1s	Tripping
